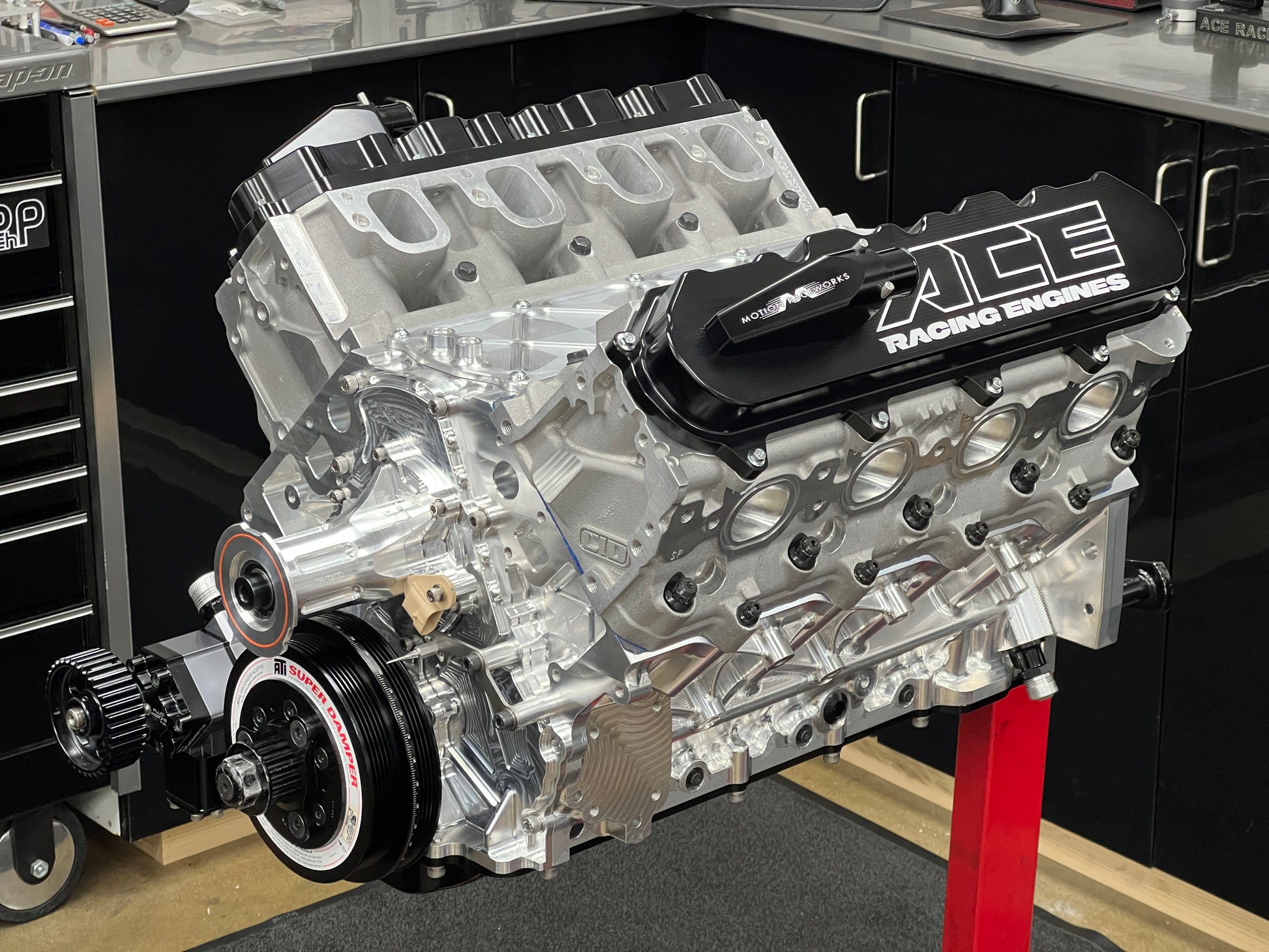

Noonan Billet LT 2300HP

Price shown includes single stage external wet oil system

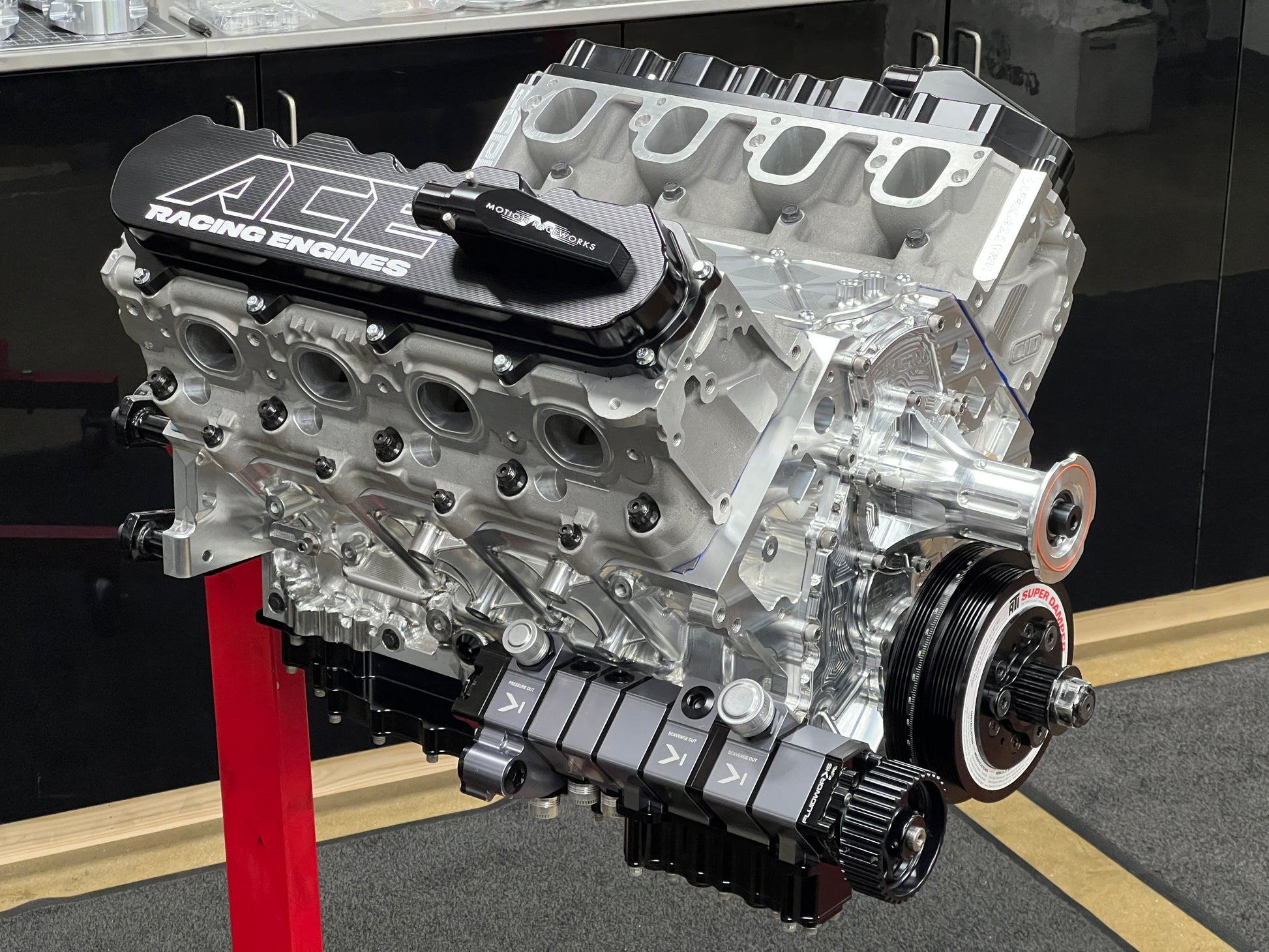

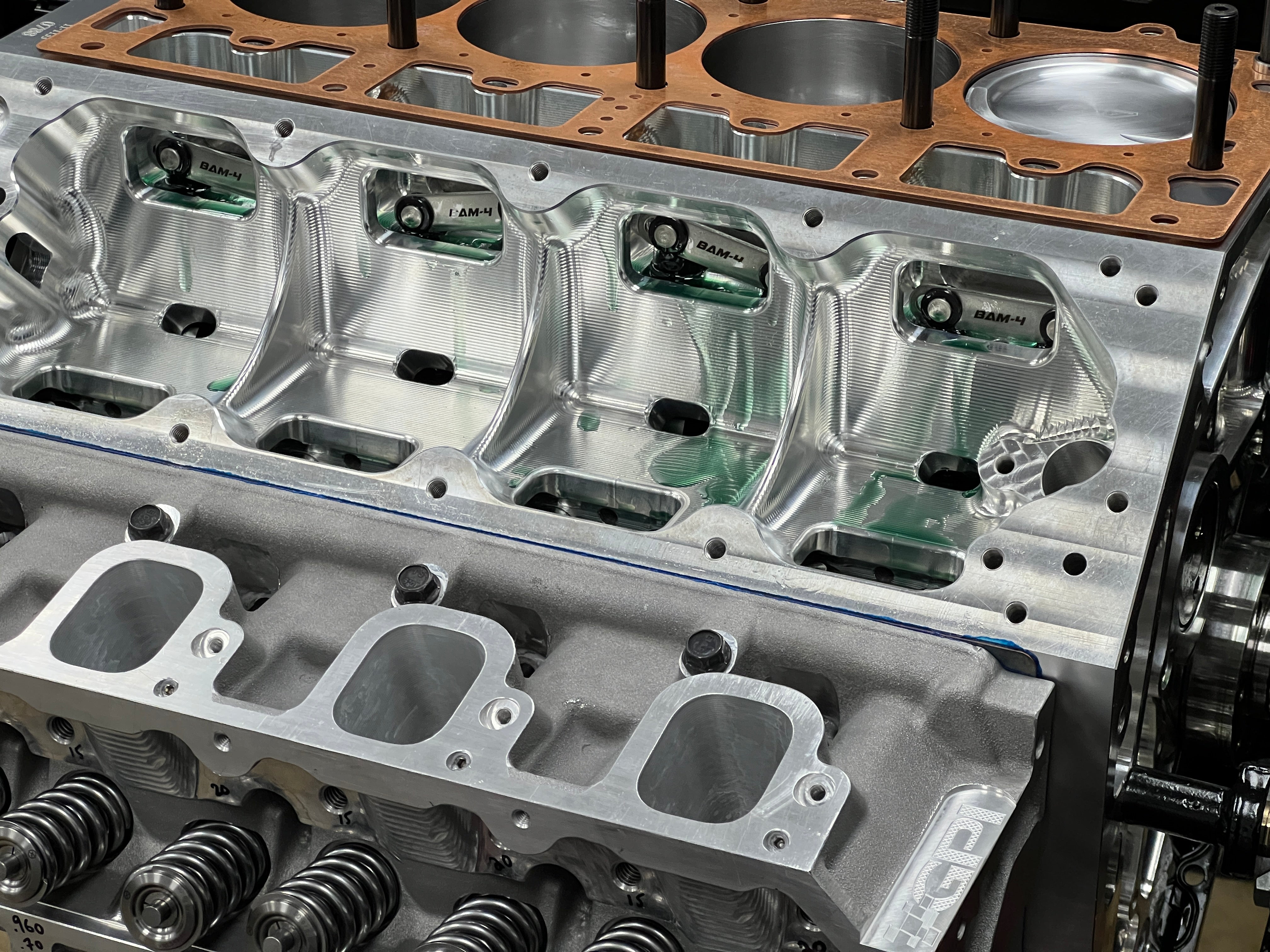

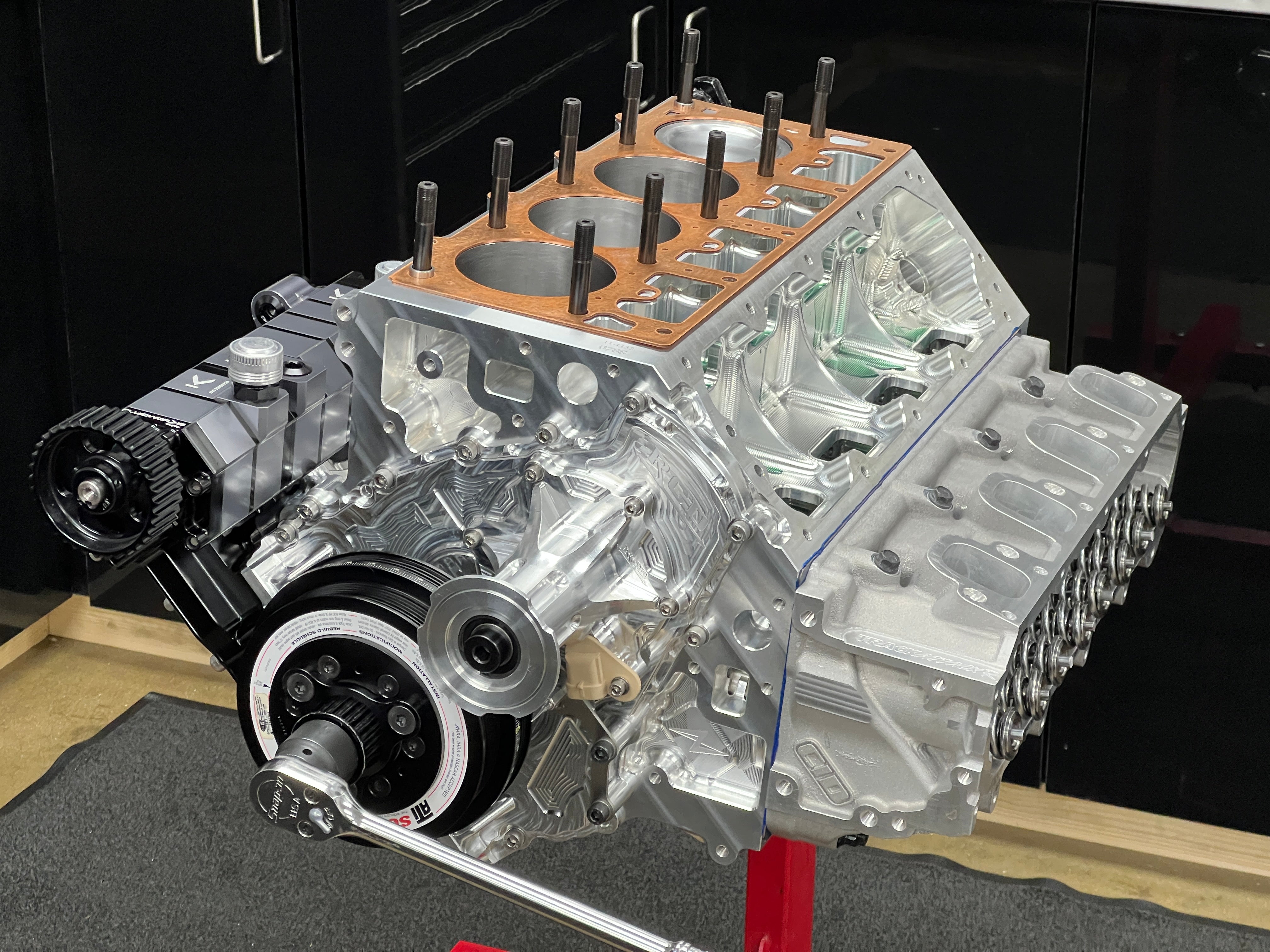

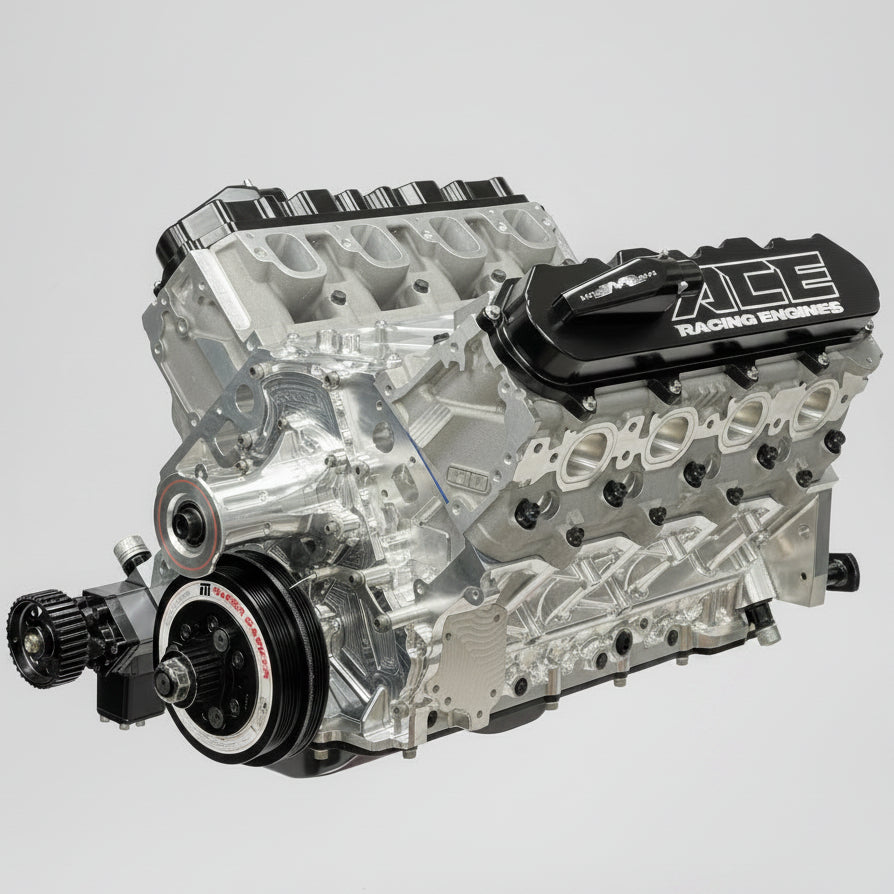

Our newest combo! Introducing the Billet Gen V LT - a collaboration between ACE, Noonan, RCD & CID Cylinder heads.

As seen in Doug Cook's Nova!

This engine is ideal for customers wanting billet block / cast head combinations to enable them to fit into a larger variety of classes.

The Next step in evolution for GM based power.

• Capable of going well into the low 4 second range @ 175-185mph.
• Commonly used in small tire 1/8 mile drag radial cars, Stick Shift, and Drag ‘N’ Drive cars.
• Built for Max Effort
• Ideal for Forced Induction applications
• 3000hp Rated
• Hydraulic or Soild Roller
• Wet / H2O

• Solid / Dry version coming soon!

All of our engines include, but not limited to the following machining/blueprinting:

• Balancing
• CNC Block Machining
• CNC Sunnen SV-30 vertical hone with diamond stones
• Cylinders double torque plate diamond honed for correct piston to wall clearance and surface finish
• Surface finish honed according to fuel and power adder
• Detailed Engine Build Specifications File

Spec:

• 2500-3000hp
• Bore: 4.125 - 4.155"
• Stroke: 3.750"
• Standard Deck
• Engine size: 400ci, 407ci. Call for more.

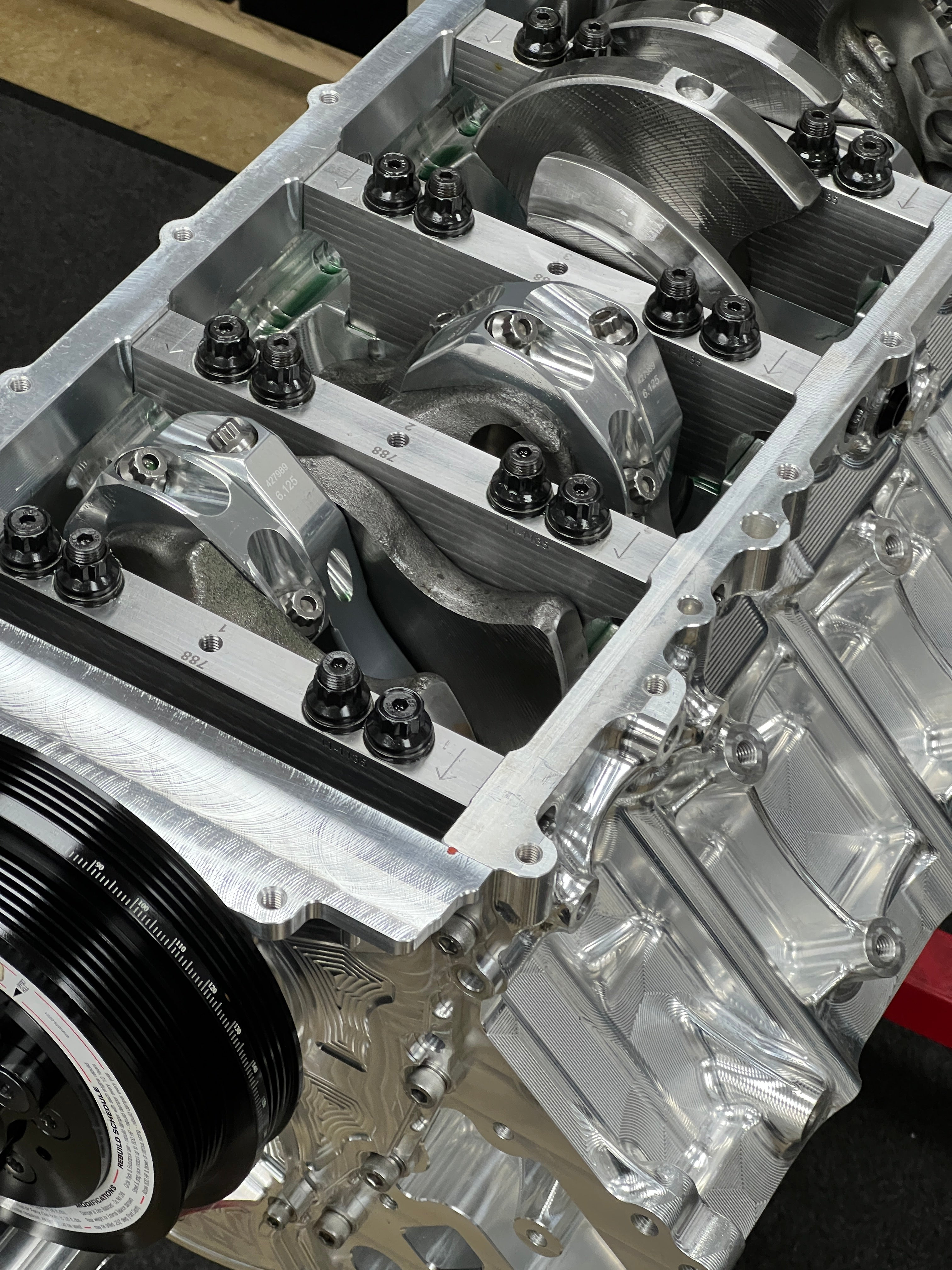

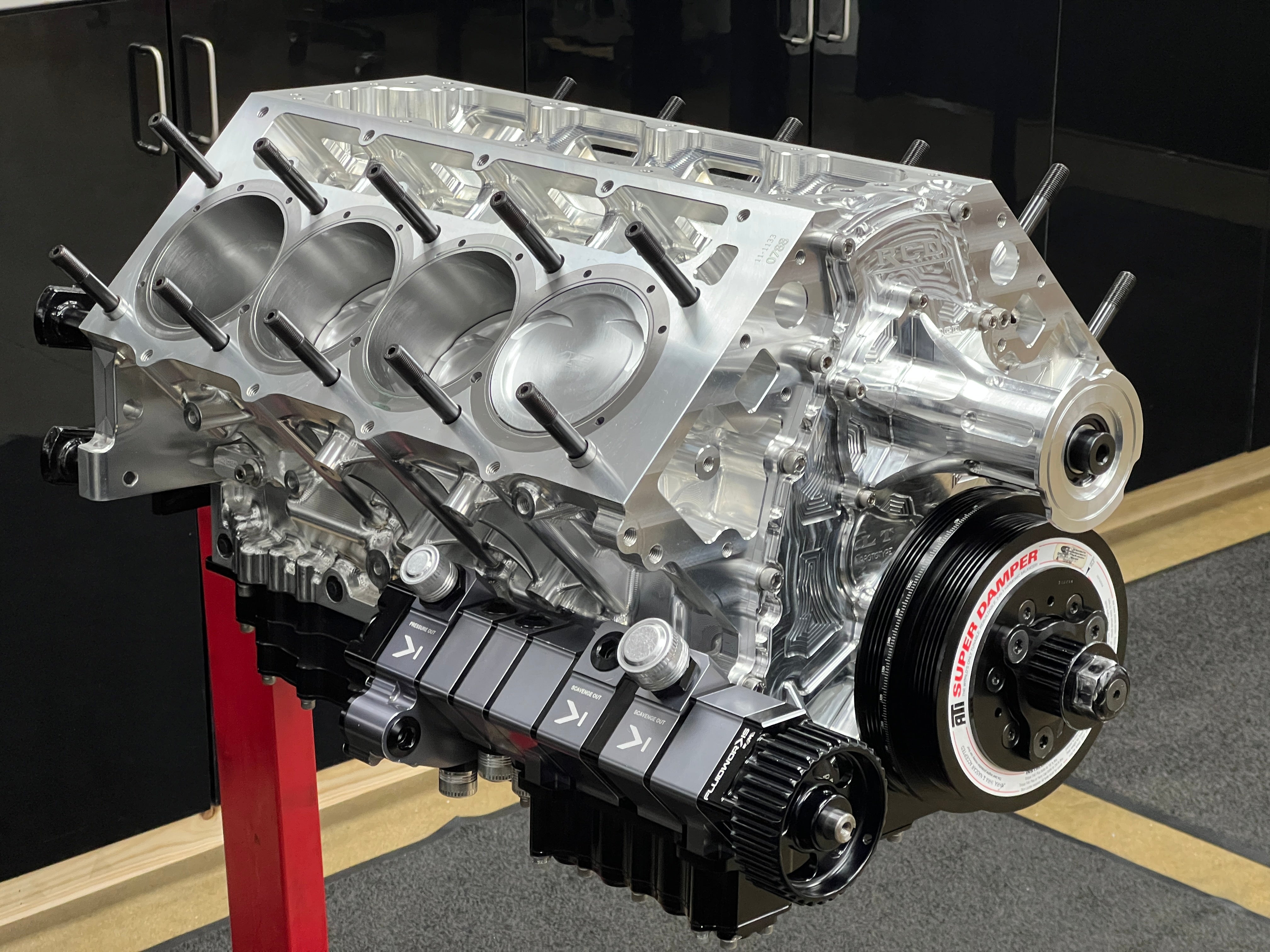

Short Block Components:

• Noonan Race Engineering Billet LT Block - Wet
• Winberg Crankshaft
• Clevite Main Bearings
• Clevite Rod Bearings
• Billet Aluminum Rods - steel rods available
• Custom Ross Racing Pistons
• Total Seal Piston Rings
• Machined for receiver grooves

Long Block Components:

• Custom Camshaft - 55mm
• Hydraulic or Solid Roller

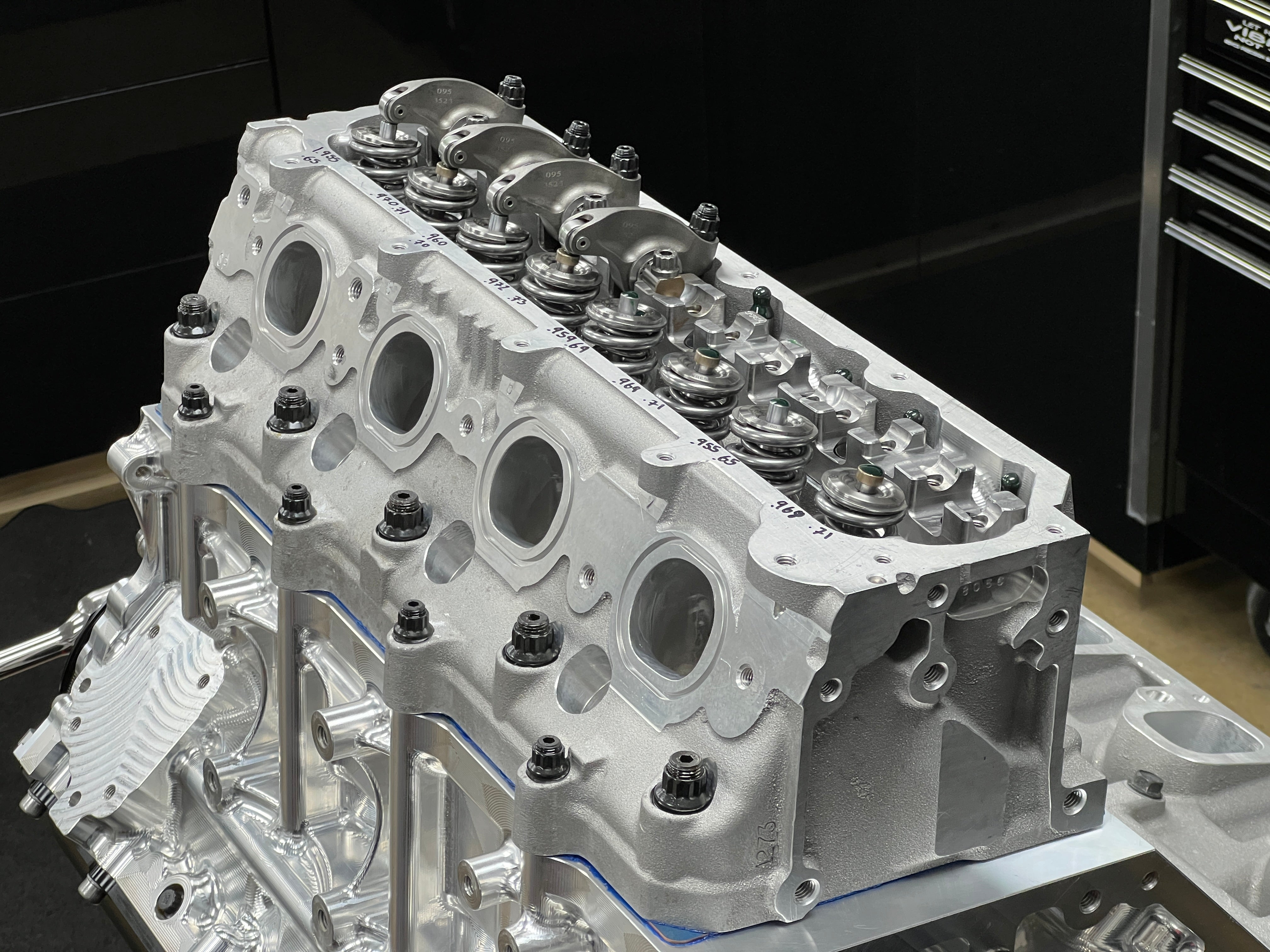

• CID LT CNC Ported Cylinder Heads, DI or Conventional
• Top Fuel Hoops
• Copper Head Gaskets
• Custom APR 2000 1/2" Head Stud Kit
• Titanium Intake Valves
• Inconel or Titanium Exhaust Valves
• PSI Springs
• .904" Tie bar Lifters
• Manton Push Rods
• Manton or Jesel Rocker arms

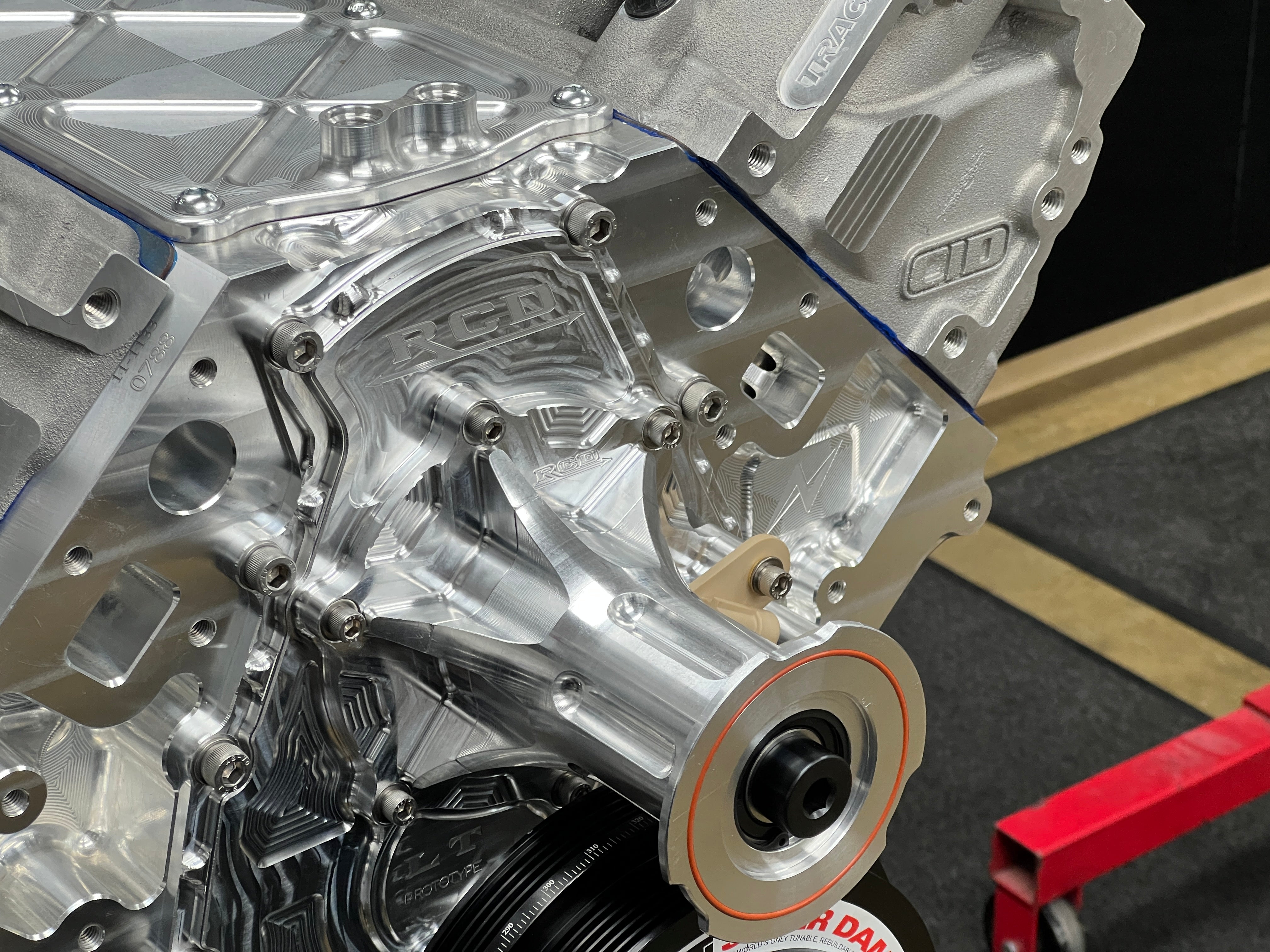

• RCD LT Billet Gear Drive
• Noonan Billet Valley Cover
• Noonan Billet Rear Cover

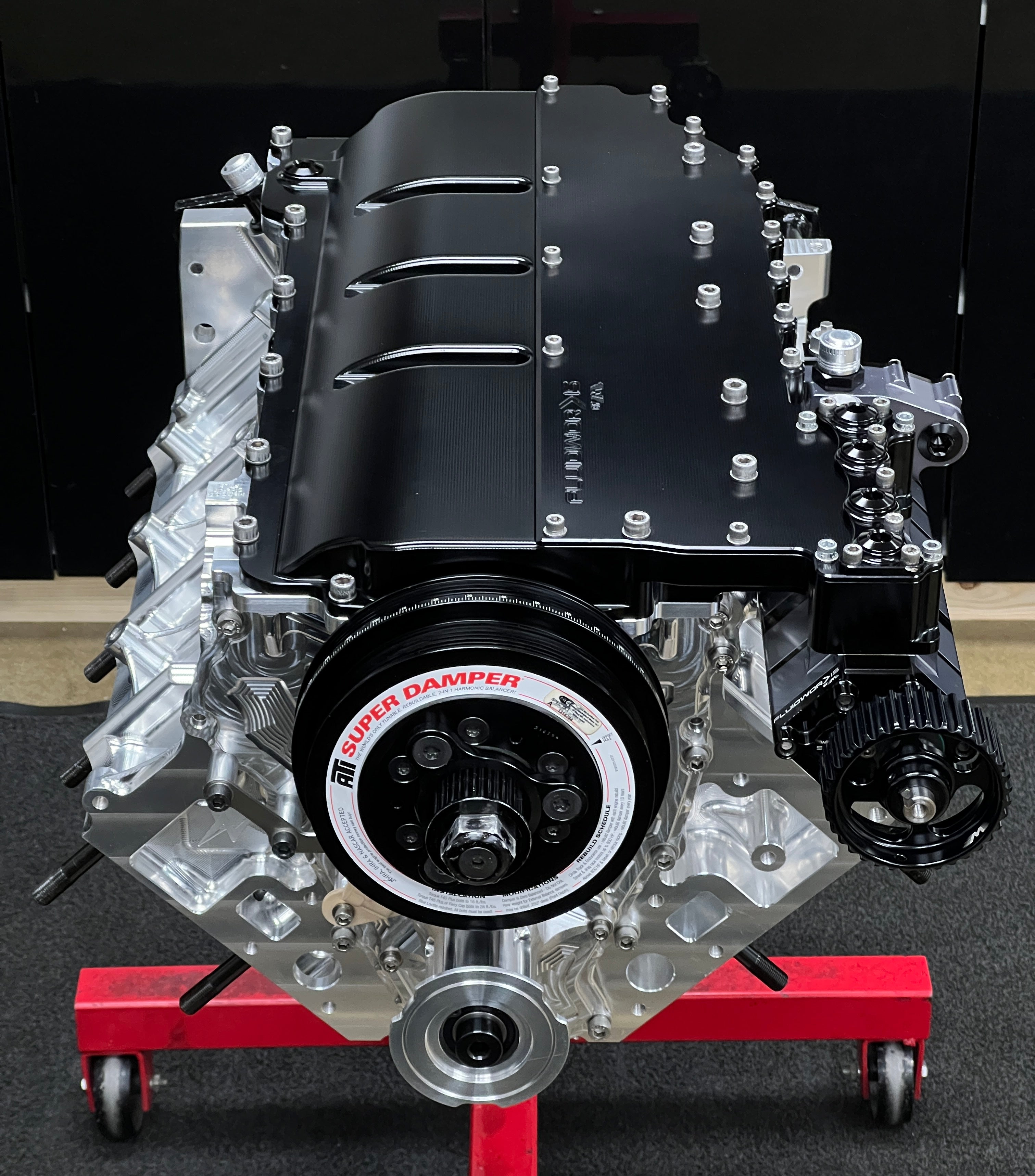

• ATI Damper
• RCD Timing Kit
• ARP Hardware

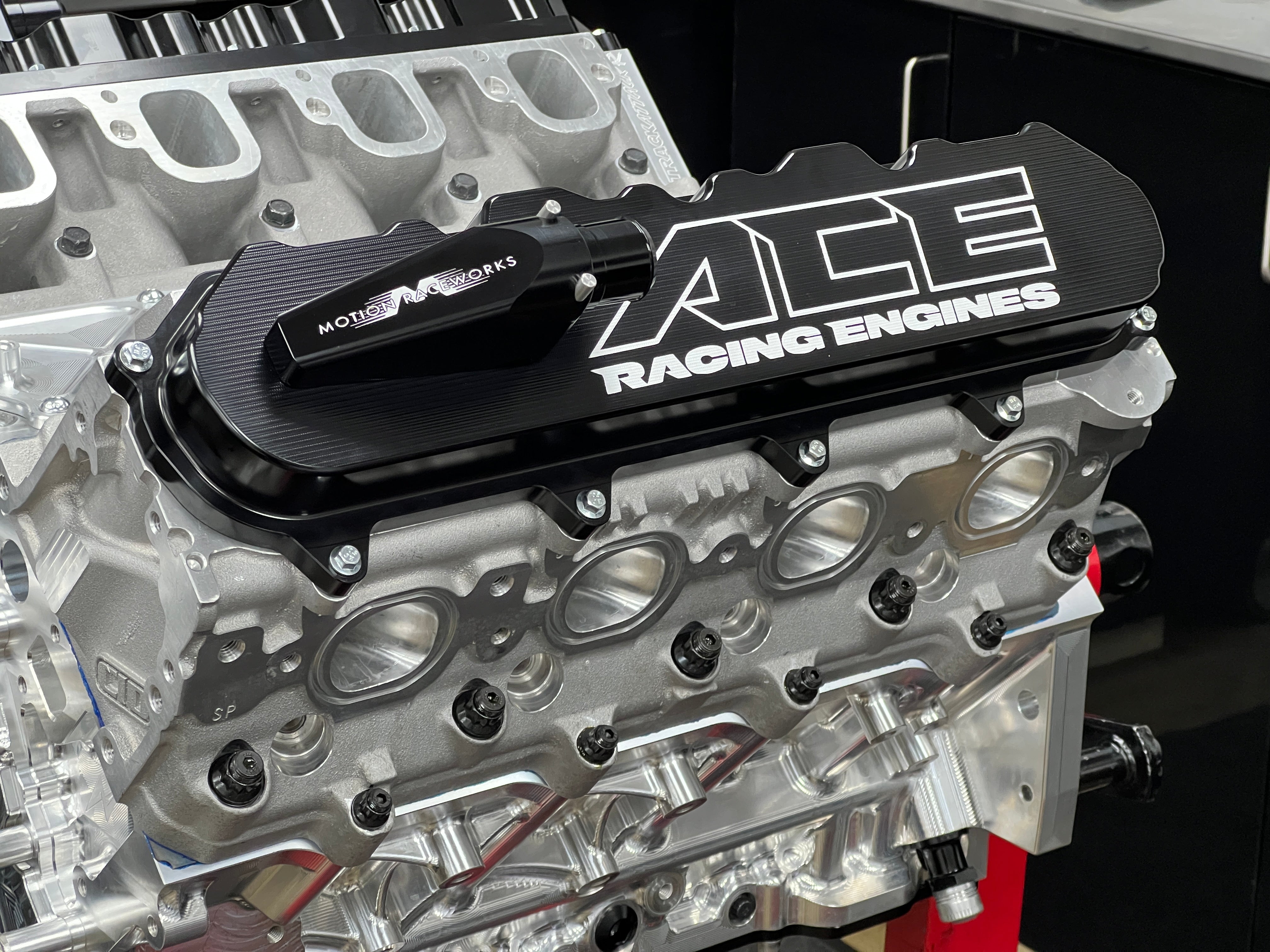

• Motion Raceworks Billet Valve covers w/ burndowns

Oil System:

• Fluidworks Dry Sump System
• Fluidworks External wet system
