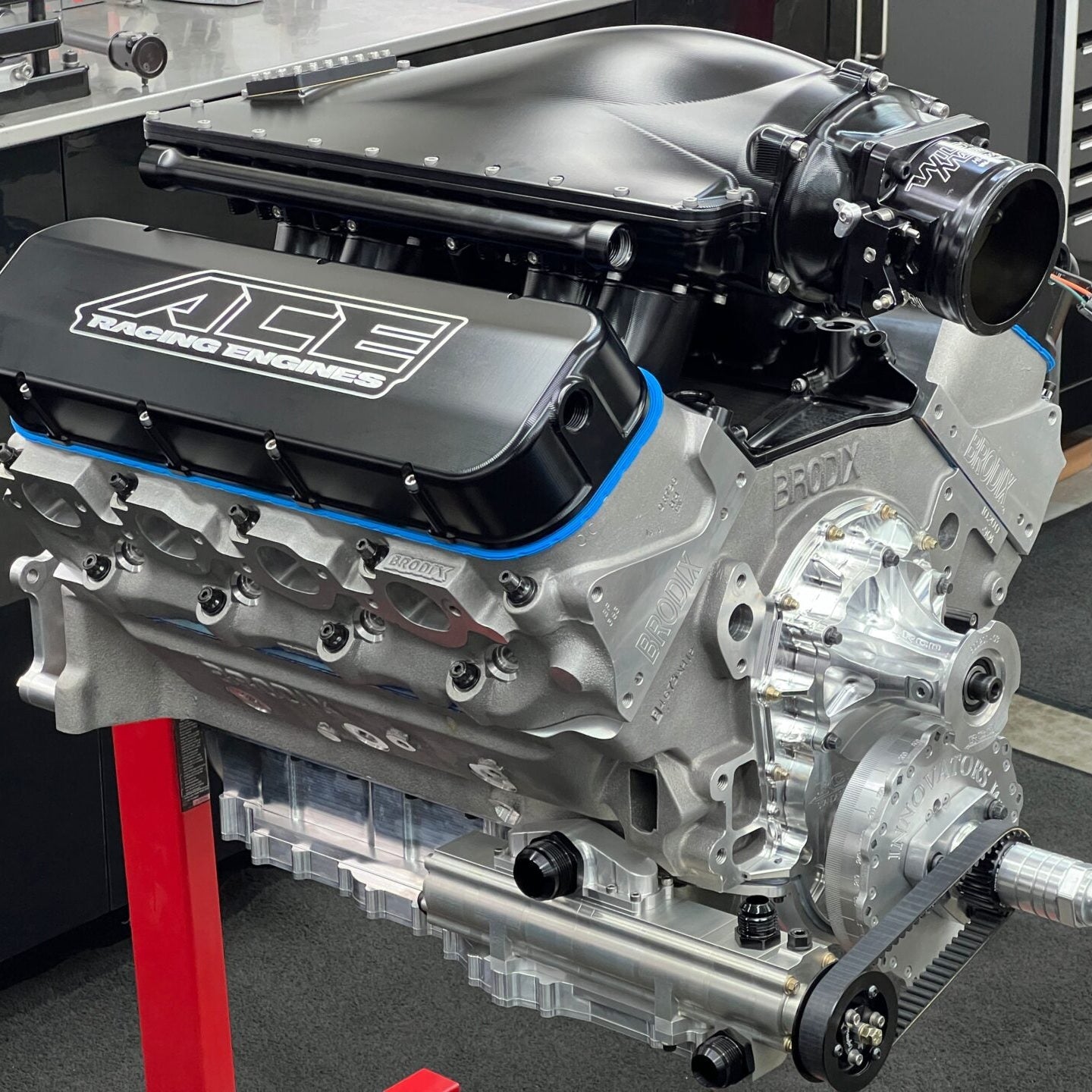

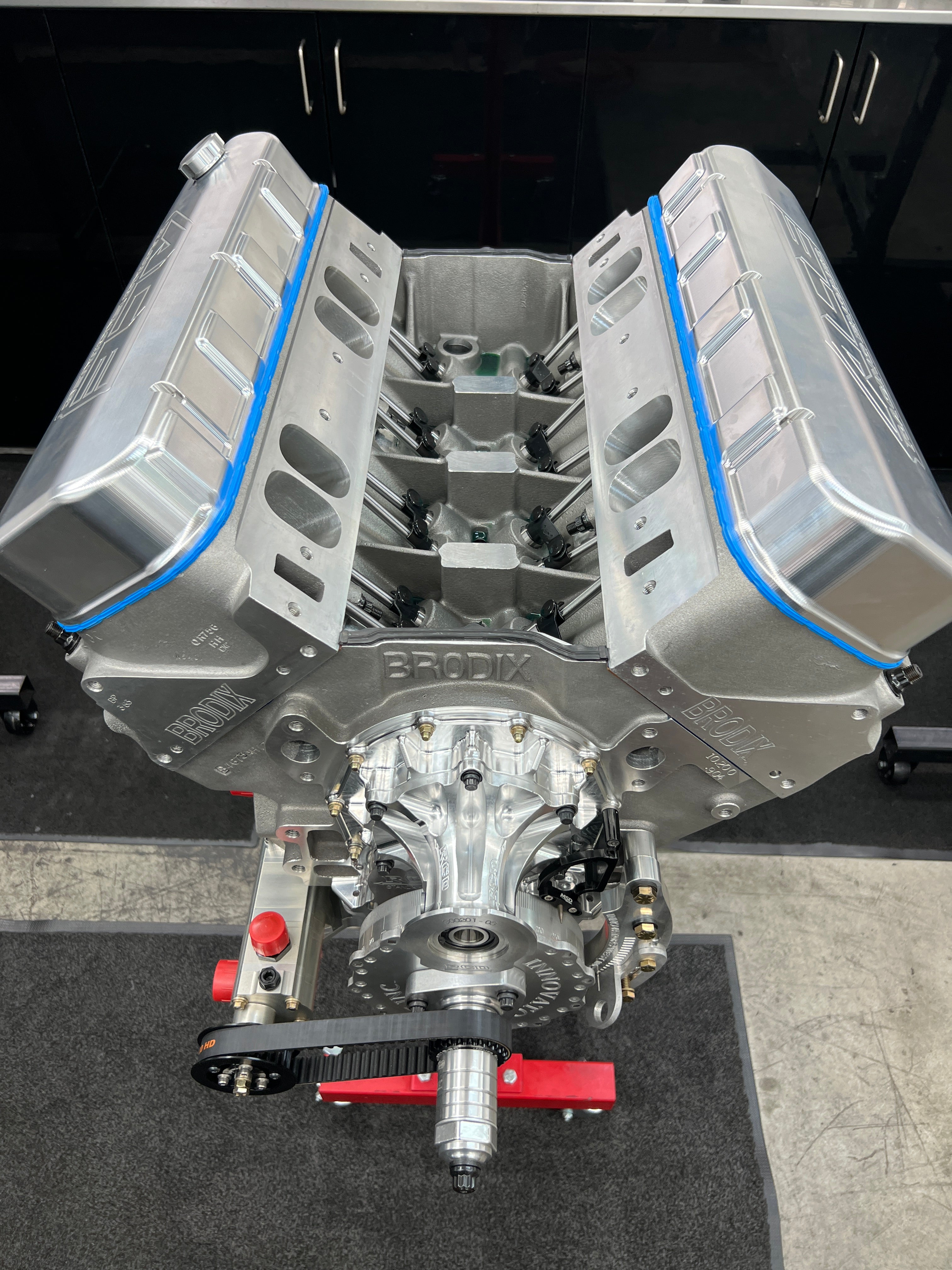

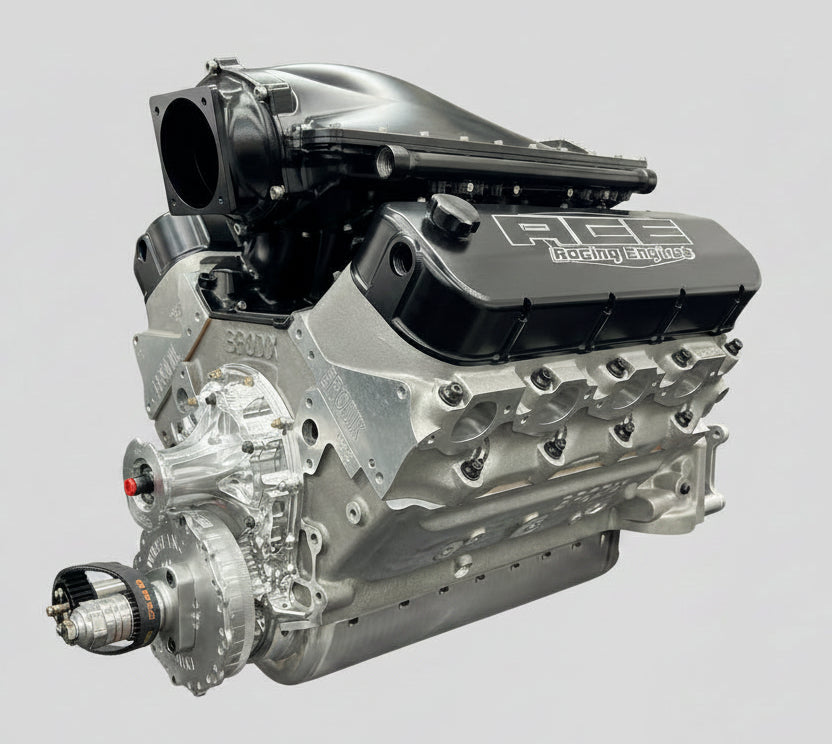

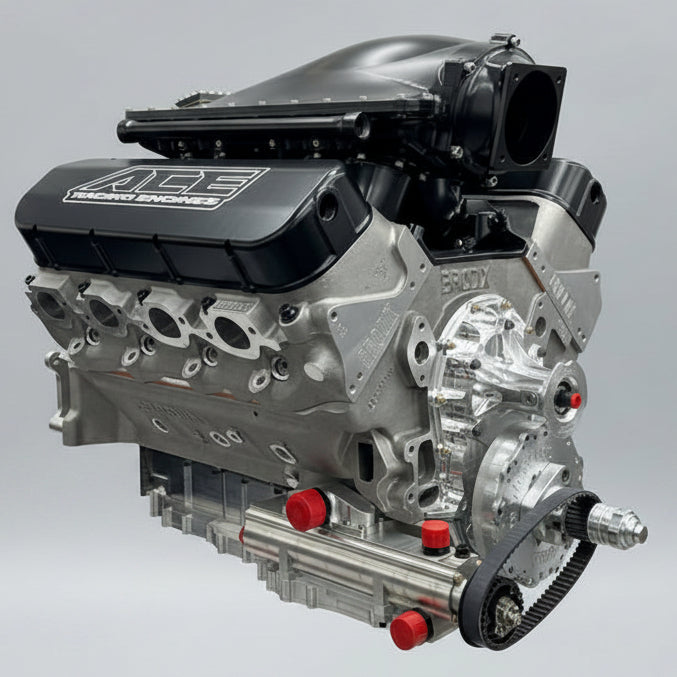

540ci Big Block Chevy

Big Blocks For All Bases, 2nd most popular engine to our Billet LS engines for Drag N Drive!

Our all-new BBC engines feature Brodix aluminum blocks and cylinder heads, precisely configured for your application. 3500hp rated and suited for twin turbocharger combinations. Can be solid block & heads for class racing or wet for Drag N Drive applications.

• Premium Castings - A-356 virgin aluminum = Maximum Strength
• CNC Machined - For 100% Consistency
• Various Options & Upgrades
• Made in the U.S.A

Endless Options for Multiple Disciplines

• Drag & Drive
• Nitrous builds
• Single or Twin-turbo
• DuckX Classes

Specification:

• 3500hp rated Brodix Aluminum short block or Billet
• Bore & stroke –4.250 x 4.500
• Engine size – 540ci

Set up includes, but not limited to the following precision machining/blueprinting:

• Balancing
• CNC Block Machining

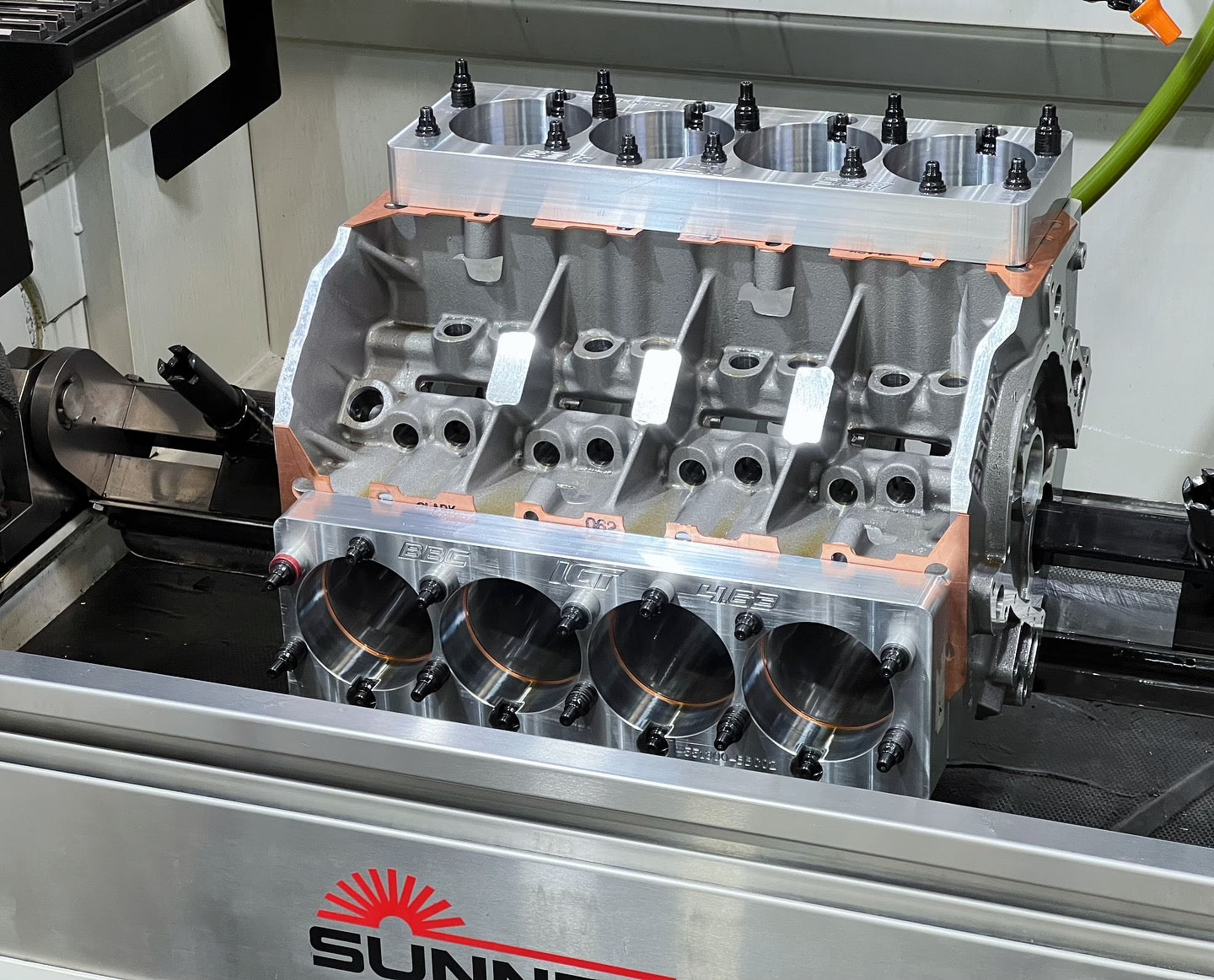

• CNC Sunnen SV-30 vertical hone with diamond stones
• Cylinders double torque plate diamond honed for correct piston to wall clearance and surface finish
• Surface finish honed according to fuel and power adder
• Detailed Engine Build Specifications File

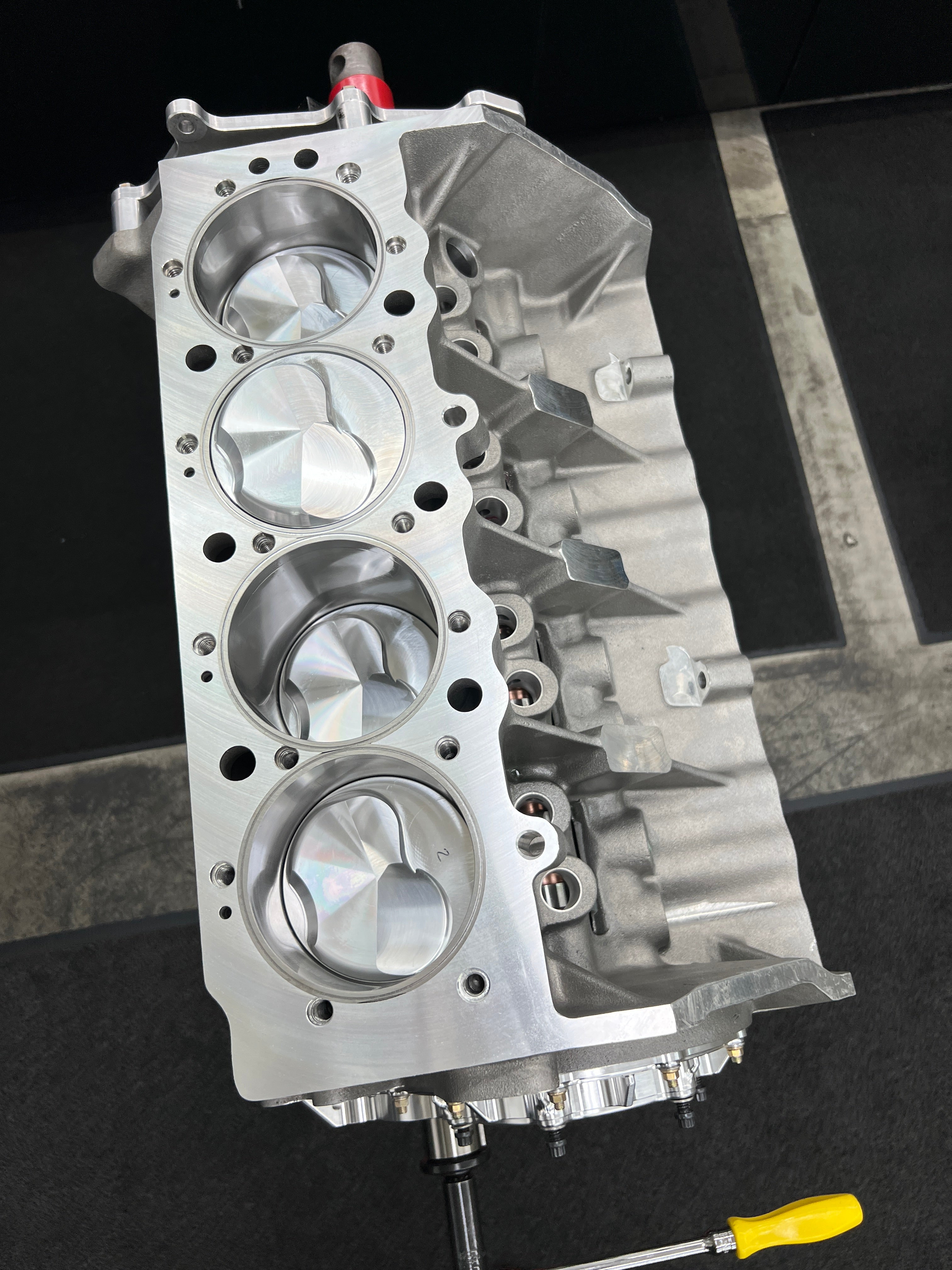

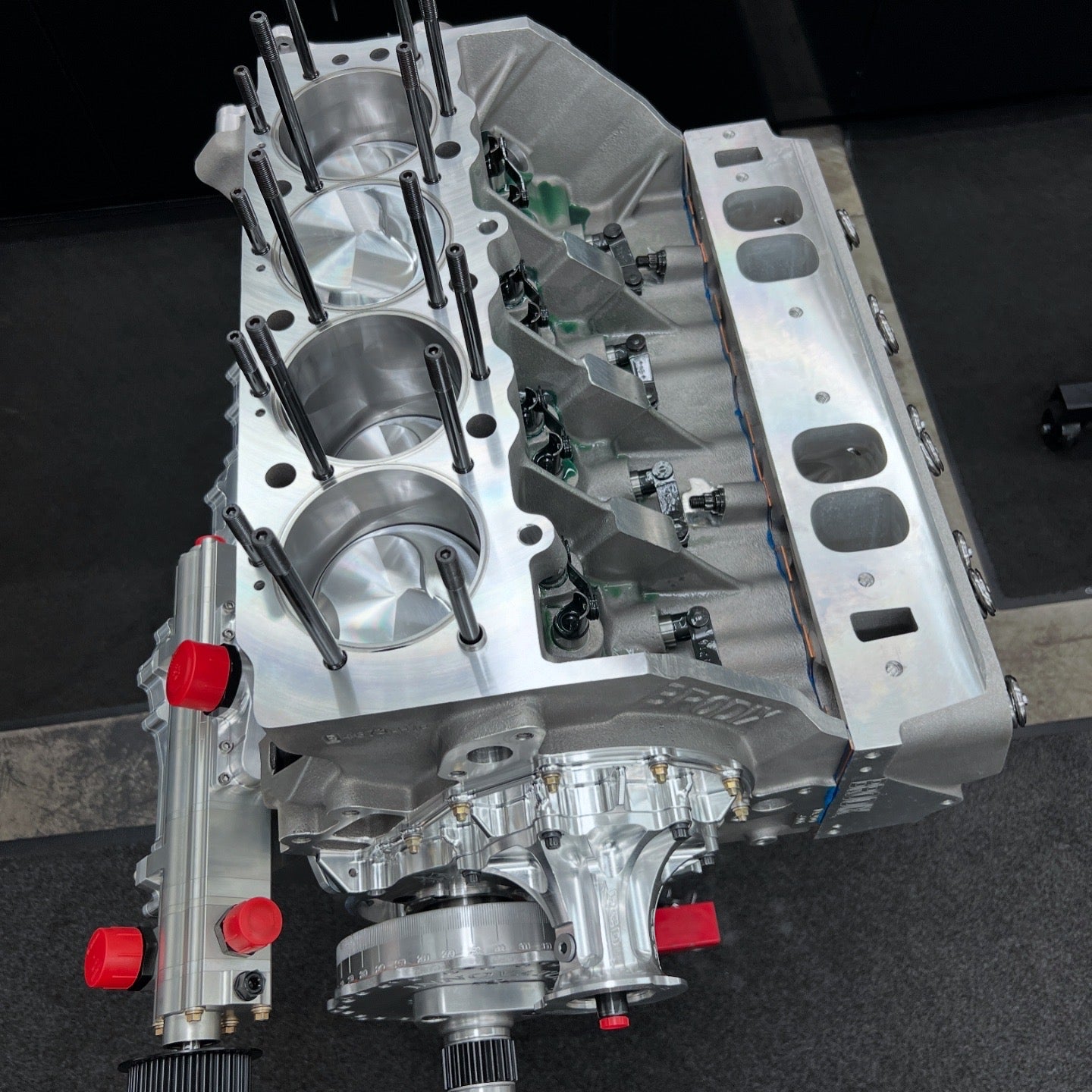

Short Block Components:

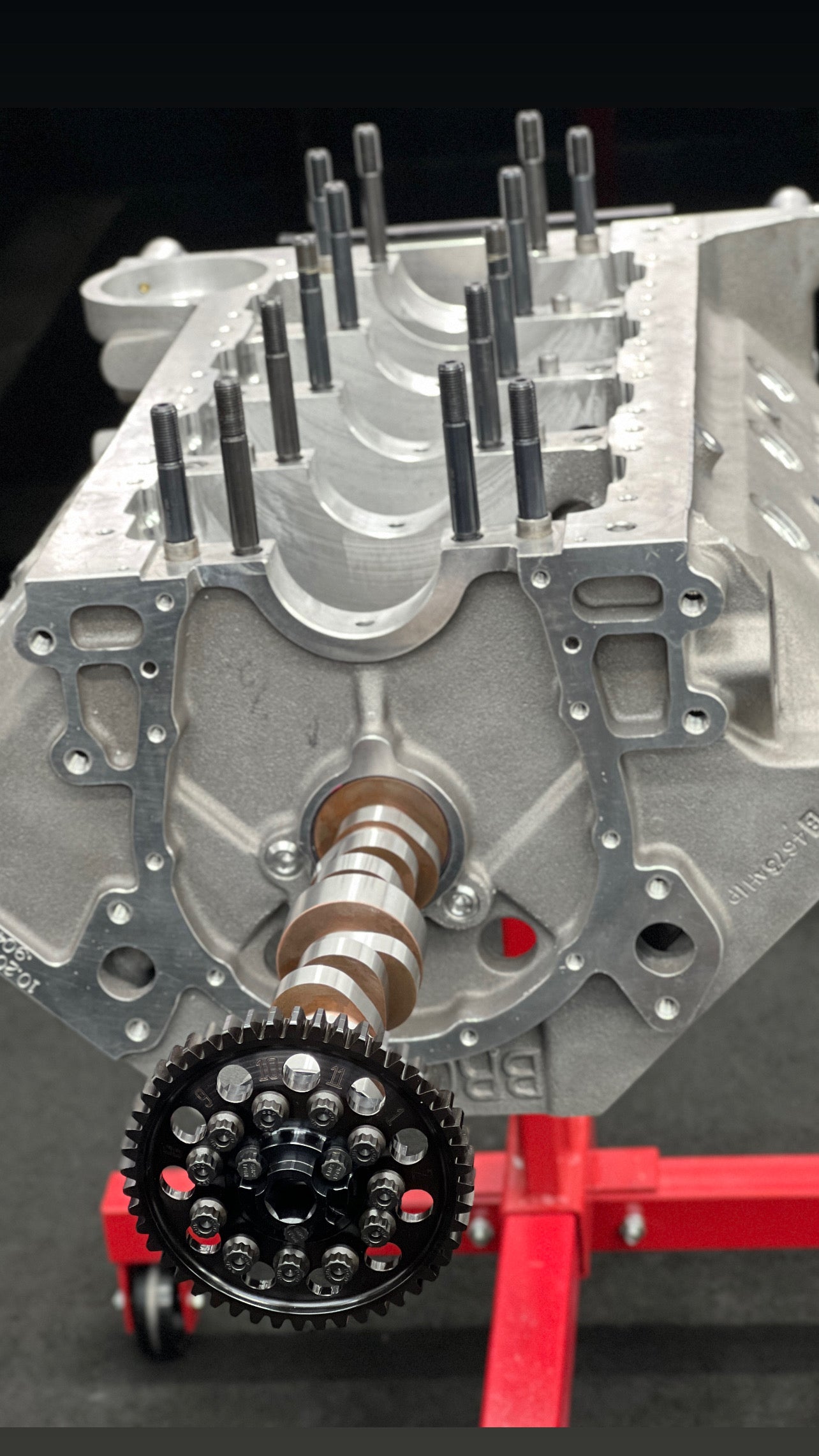

• Brodix 8B-2000 Aluminum Block - Other options available including Billet

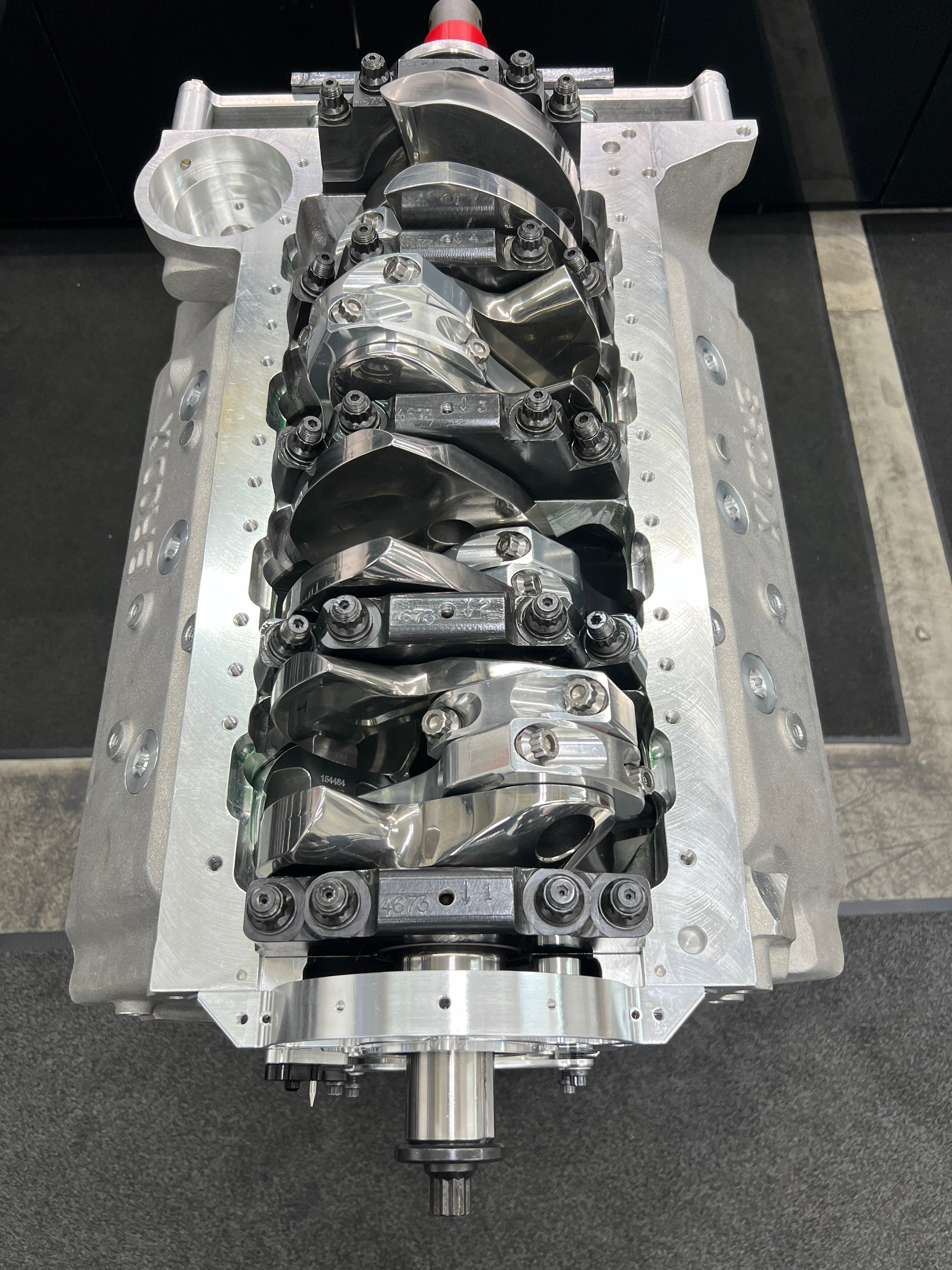

• Winberg BBC Billet Crankshaft
• Clevite Rod Bearings
• V Series Main Bearings
• Custom Ross Racing Pistons
• Billet Aluminum Rods
• Total Seal Piston Rings

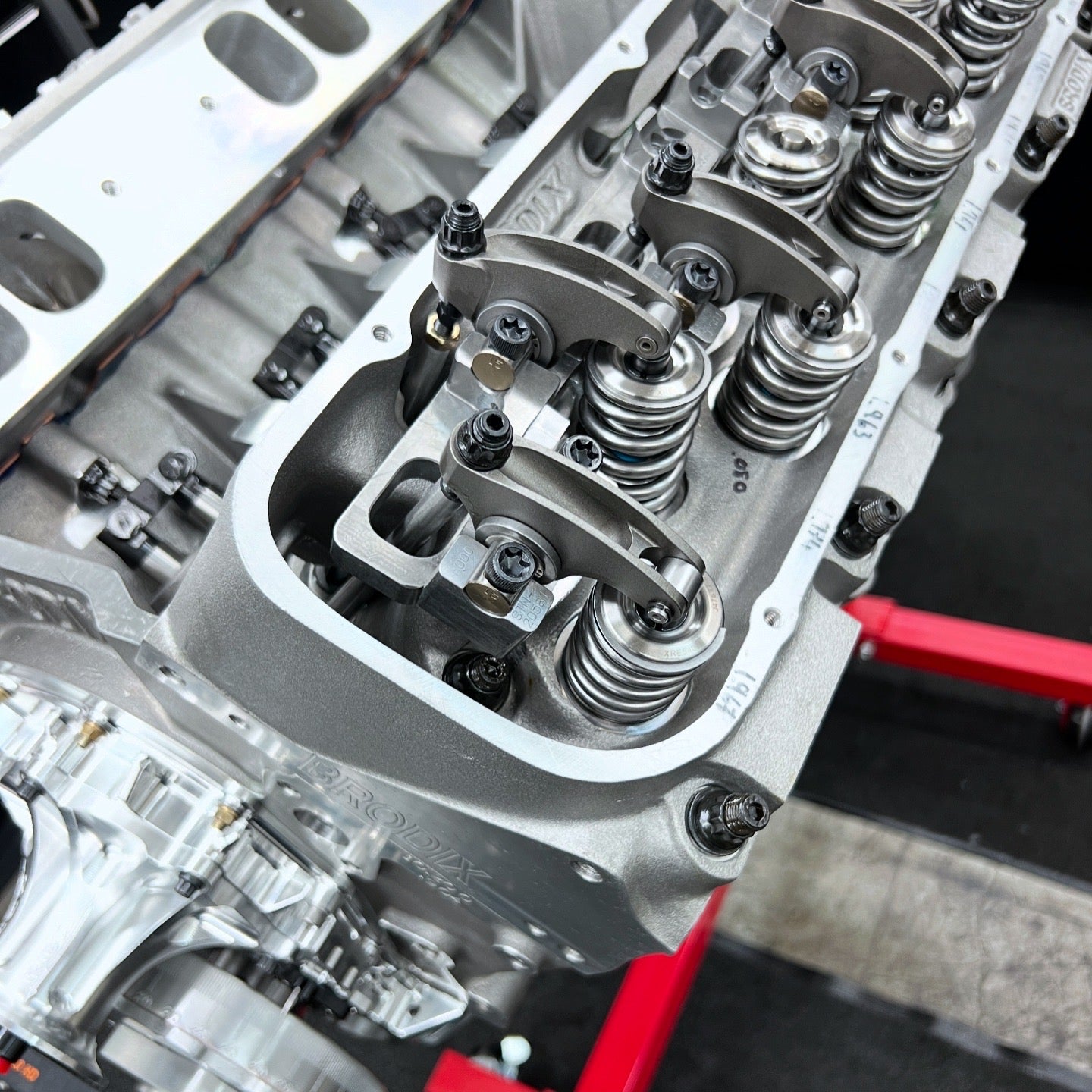

Long Block Components:

• Brodix
  • Other options available - Dart, JLine Performance, Visner, or CN Cylinder Heads
• Titanium Intake Valves
• Titanium Exhaust Valves
• Custom Camshaft 60mm
• Copper Heads Gaskets
• PSI Springs
• Manton Push Rods
• Jesel Shaft Rockers
• BAM .904" Lifters - Or .937" Jesel Keyway Lifters
• ATI Damper

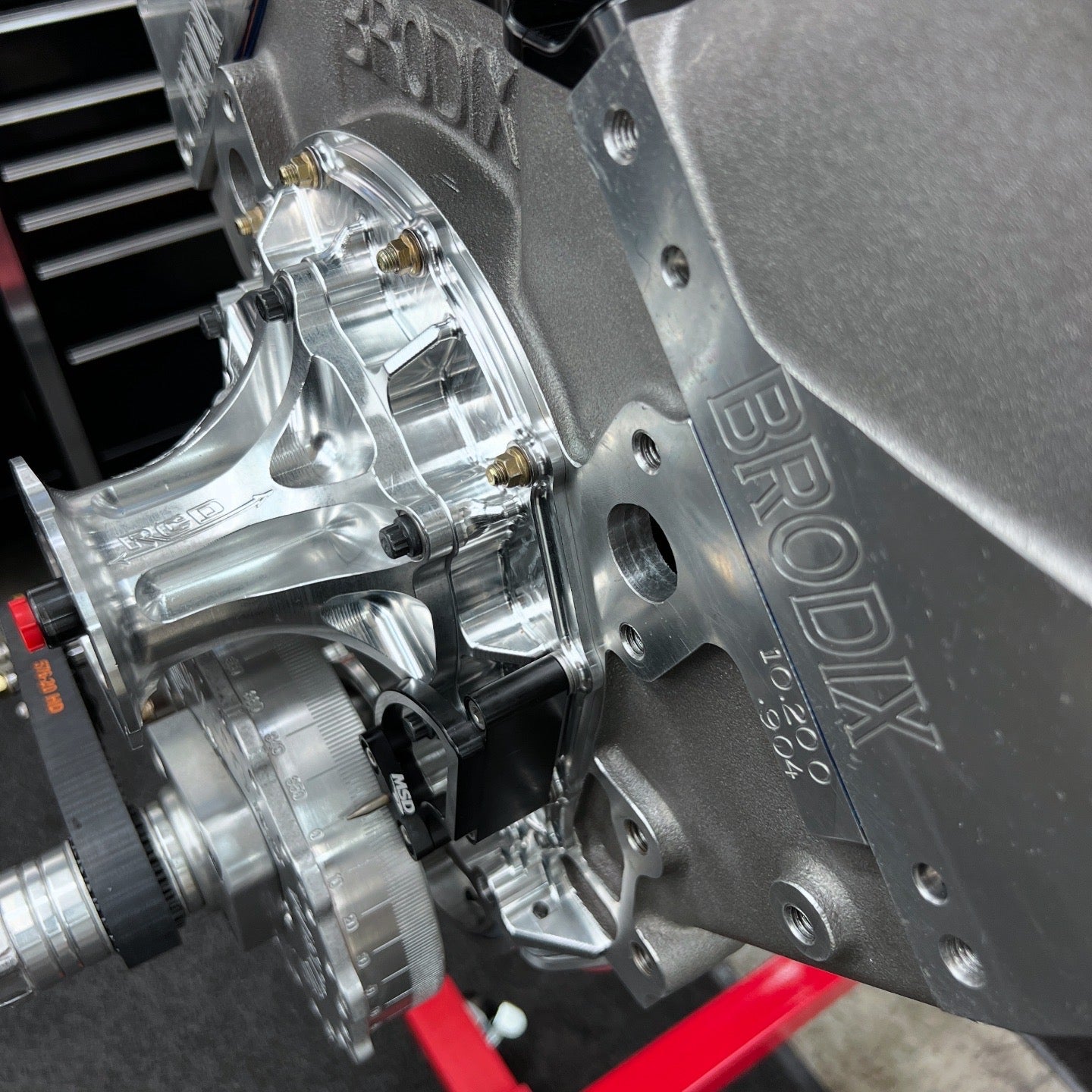

• RCD Gear Drive w/ Fuel Pump Snout
• RCD Timing pointer
• ARP Hardware
• Dailey Engineering dry sump system.
• ACE Billet Valve Covers
• Shaun's Custom Alloy Billet Intake
