4.9 Noonan Typhoon Hemi Drag N Drive Engine

COMING SOON!

4.9 Noonan Typhoon Hemi H2O Drag N Drive Engine – The Ultimate Drag & Drive Engine!

Designed for max effort drag & drive combinations

Key improvements include:

• Optimized valvetrain geometry

• Stronger cylinder head stud pattern and size

• Raised cam design for durability

• Reinforced main cap design

Built for Serious Racers

The 4.9 Noonan block delivers:

• Maximum horsepower potential

• Easier trackside serviceability

4.9 Noonan Typhoon Hemi H2O Drag N Drive Engine includes, but not limited to the following machining/blueprinting:

• Balancing
• CNC Block Machining
• CNC Sunnen SV-30 vertical hone with diamond stones
• Cylinders double torque plate diamond honed for correct piston to wall clearance and surface finish
• Surface finish honed according to fuel and power adder
• Detailed Engine Build Specifications File

Short Block Components:

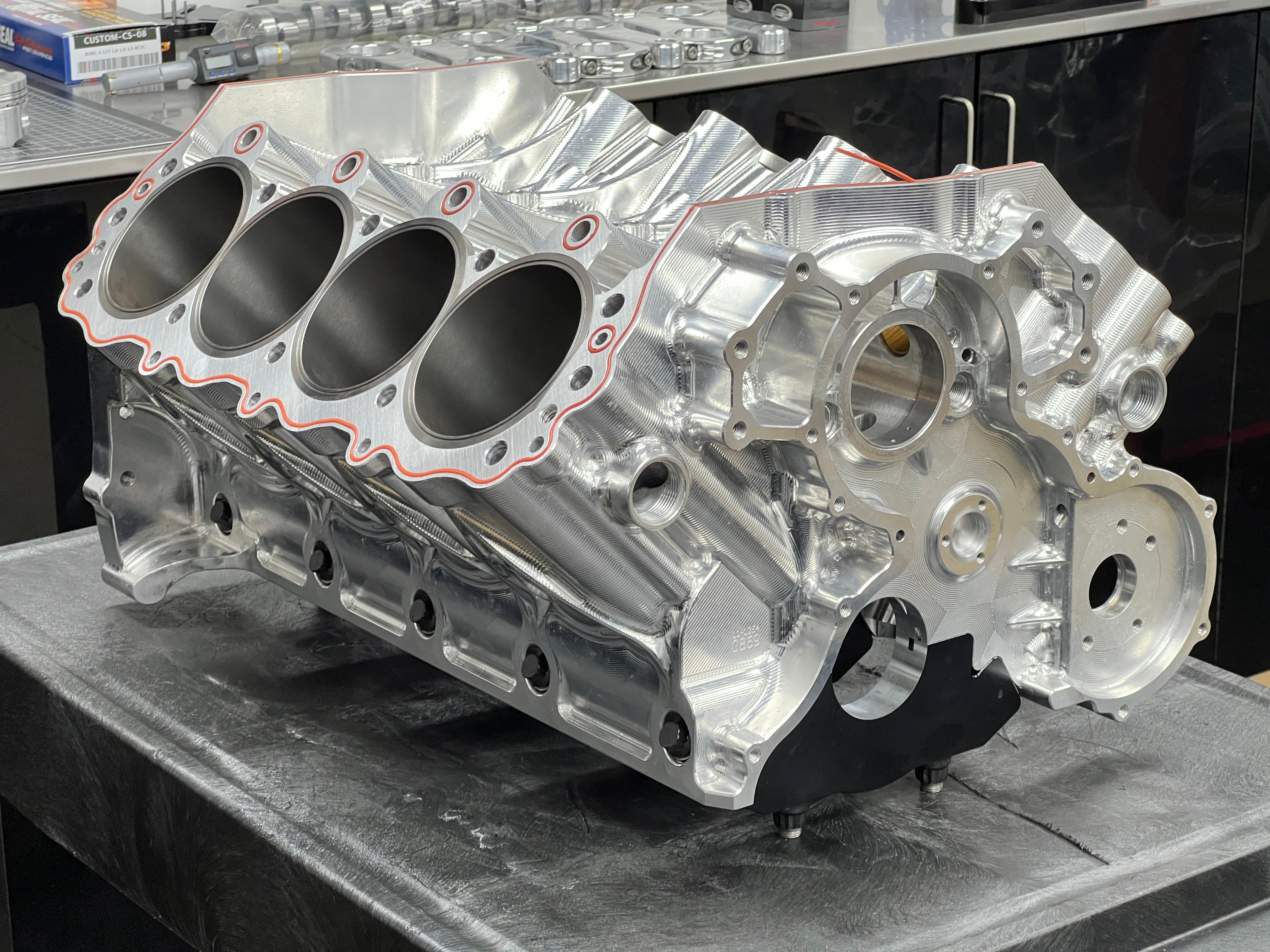

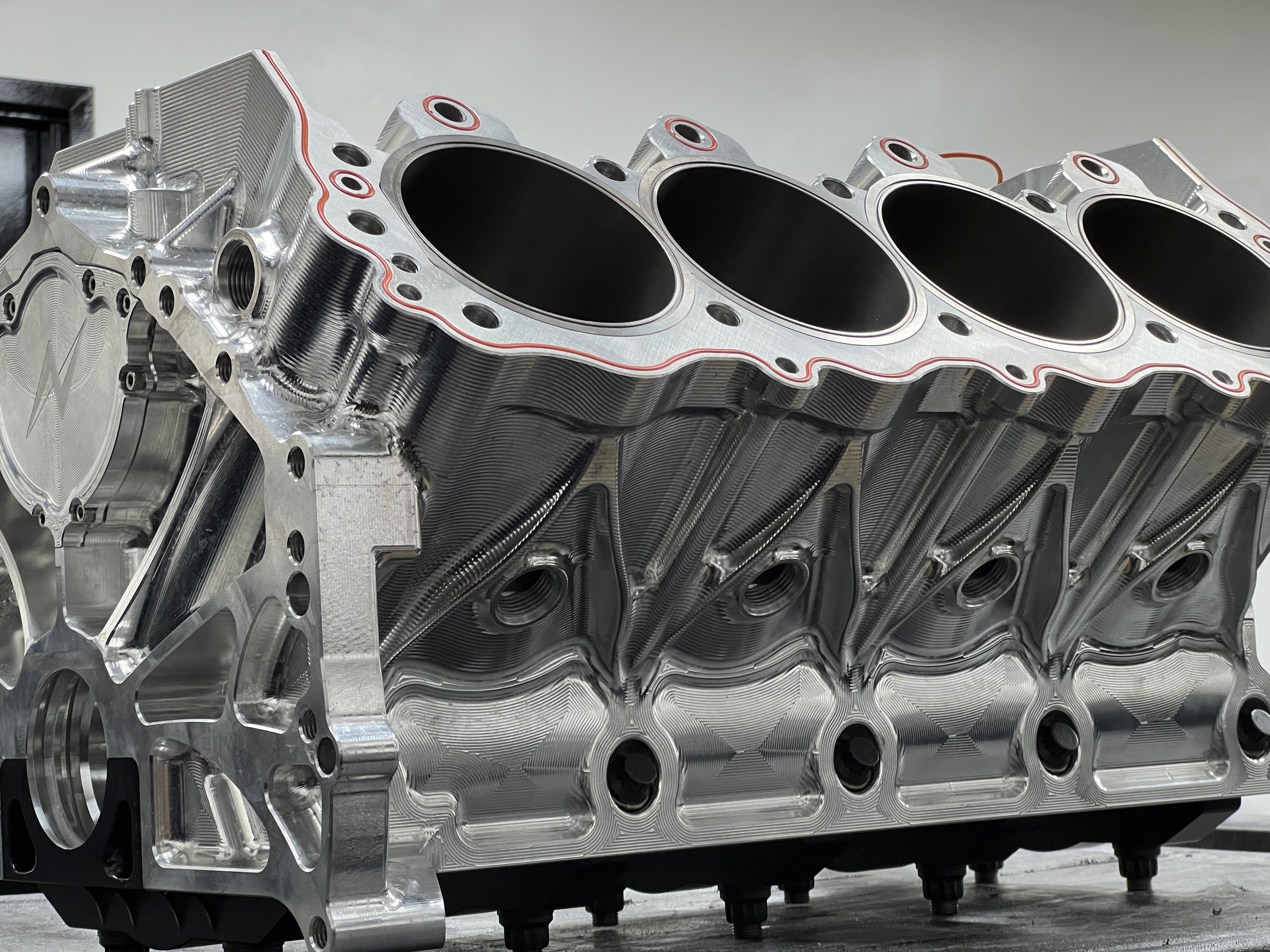

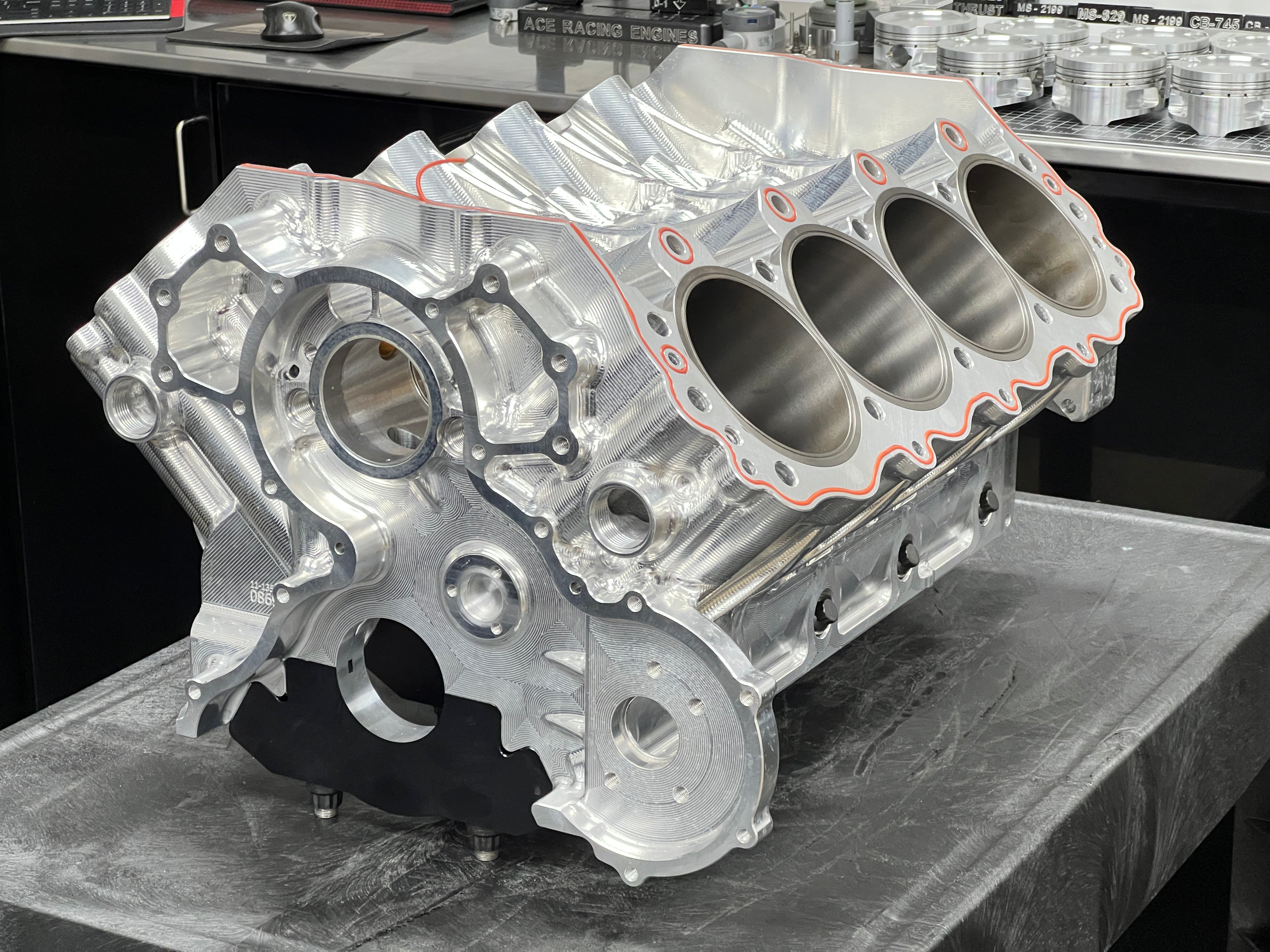

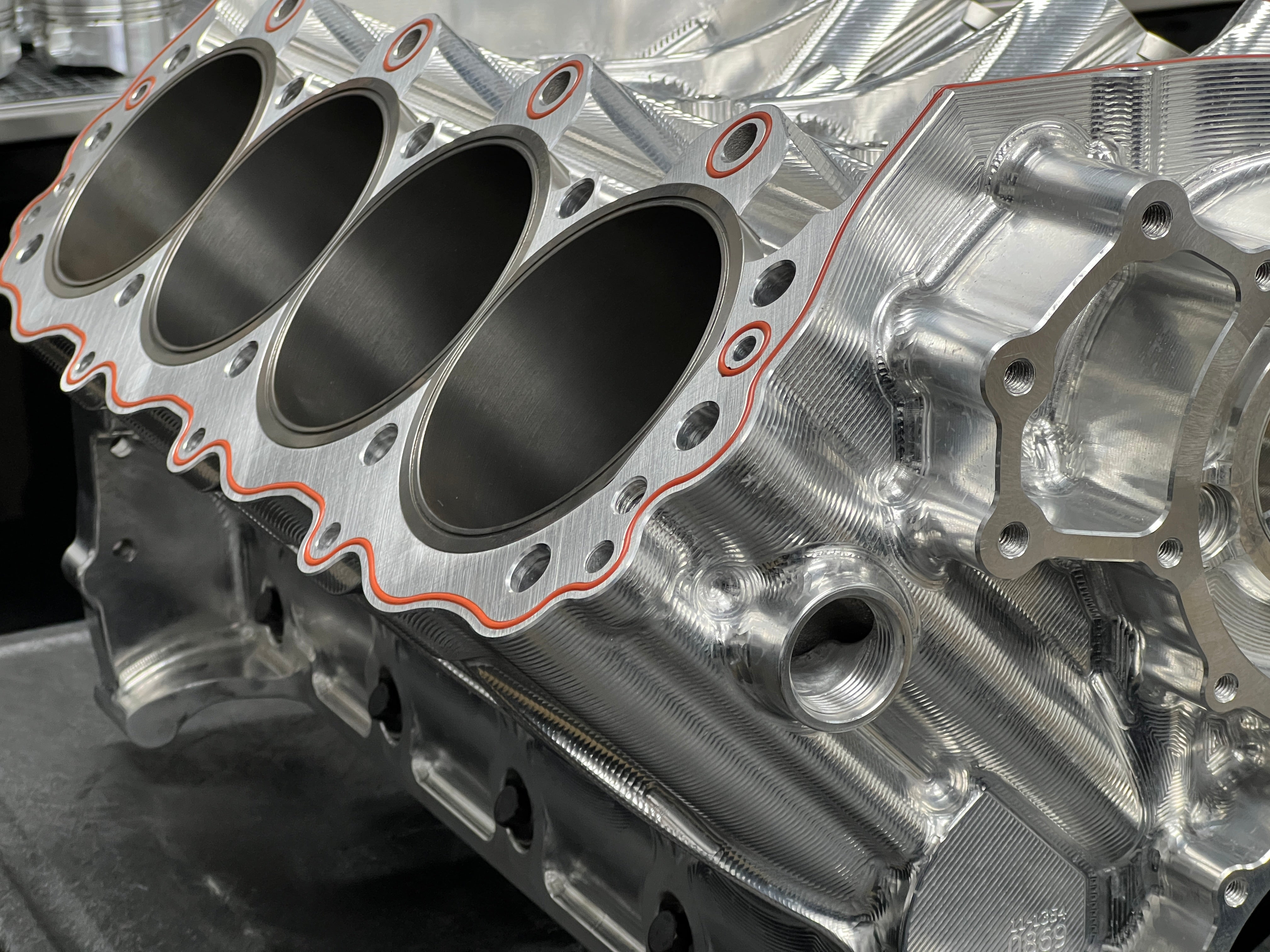

• Noonan 4.9" Typhoon H2O Hemi block
• Clevite Main Bearings
• Clevite Rod Bearings
• 70mm Cam Bearings
• Winberg or Callies Billet Crankshaft
• Billet Aluminum Rods
• Custom ROSS Racing Pistons

Long Block Components:

• Custom Camshaft 70mm
• Jesel 1.062 Keyway lifters
• Noonan H2O Hemi 4.9 cylinder heads
• Top Fuel Hoops
• ARP 5/8" Head Studs
• Copper Head Gaskets
• Titanium Intake valves
• Titanium Exhaust valves
• PSI Valve Springs
• Manton Push Rods
• Manton Billet Rocker Arms
• RCD Gear Drive
• ATI Damper
• RCD Timing Kit
• Oil Pump & Custom Oil Pan
• Noonan Billet Intake Manifold & Fuel Rails
• ARP Hardware
• Noonan/ACE Racing Engines Billet Valve Covers
