540ci Big Block Chevy
540ci Big Block Chevy
Call to discuss goals & options +1 (941) 220-6779
Big Blocks For All Bases, 2nd most popular engine to our Billet LS engines for Drag N Drive!

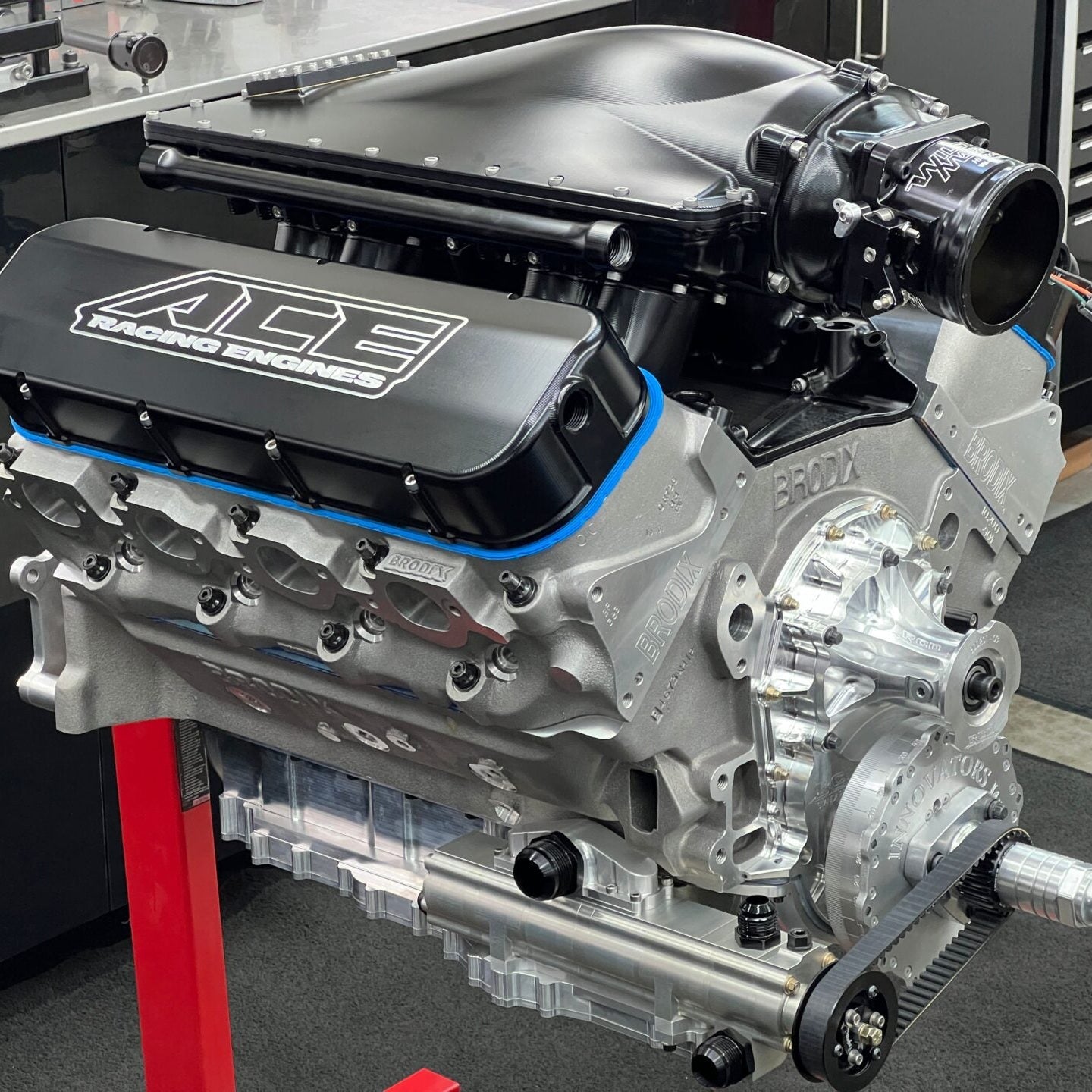

Our all-new BBC engines feature Brodix aluminum blocks and cylinder heads, precisely configured for your application. 3500hp rated and suited for twin turbocharger combinations. Can be solid block & heads for class racing or wet for Drag N Drive applications.
- Premium Castings - A-356 virgin aluminum = Maximum Strength
- CNC Machined - For 100% Consistency
- Various Options & Upgrades
- Made in the U.S.A
Endless Options for Multiple Disciplines
- Drag & Drive
- Nitrous builds
- Single or Twin-turbo
- DuckX Classes
Spec:
- 3500hp rated Brodix Aluminum short block or Billet
- Bore & stroke –4.250 x 4.500
- Engine size – 540ci
Set up includes, but not limited to the following precision machining/blueprinting:
- Balancing
- CNC Block Machining
- CNC Sunnen SV-30 vertical hone with diamond stones
- Cylinders double torque plate diamond honed for correct piston to wall clearance and surface finish
- Surface finish honed according to fuel and power adder
- Detailed Engine Build Specifications File
Short Block Components:
- Brodix 8B-2000 Aluminum Block - Other options available including Billet
- Winberg BBC Billet Crankshaft
- Clevite Rod Bearings
- V Series Main Bearings
- Custom Ross Racing Pistons
- Billet Aluminum Rods
- Total Seal Piston Rings
Long Block Components:
-
Brodix
- Other options available - Dart, JLine Performance, Visner, or CN Cylinder Heads
- Titanium Intake Valves
- Titanium Exhaust Valves
- Custom Camshaft 60mm
- Copper Heads Gaskets
- PSI Springs
- Manton Push Rods
- Jesel Shaft Rockers
- BAM .904" Lifters - Or .937" Jesel Keyway Lifters
- ATI Damper
- RCD Gear Drive w/ Fuel Pump Snout
- RCD Timing pointer
- ARP Hardware
- Dailey Engineering dry sump system.
- ACE Billet Valve Covers
- Shaun's Custom Alloy Billet Intake
We recommend FuelTech EFI management for this engine.
- ACE Racing Engines makes no guarantee regarding operation of the Goods in settings or in ways that may be illegal or highly regulated, including those regarding smog and emissions. Please refer to your State/Country guidelines. – Not for street use.
- Due to the custom nature of our builds, the product images shown here are for illustration purposes only and may not be an exact representation of the product.
