*OPEN BOX SALE* GARRETT G45-1500, 76MM TURBO SUPERCORE

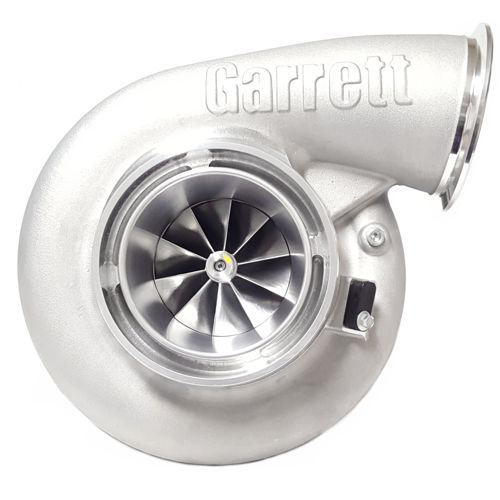

Garrett G45-1500-76MM SUPERCORE ONLY – P/N: 888169-5005S w/ Compressor Housing w/ V-Band Outlet, capable of 1500HP!

PN: 888169-5005S

TWO AVAILABLE. NEW. NEVER INSTALLED

Product Features:

• Quick spooling, high horsepower solution for 2.0 liter up to 8.0 liter engine platforms
• G Series compressor aero increases flow up to 24% (compared to GTX4508R)
• 76mm compressor inducer sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter (please check relevant rulebook)
• Dual ceramic ball bearing with steel cages
• G Series turbine aero increases flow 14% (compared to GTX4508R)
• Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with super core
• Fully machined speed sensor and pressure ports
• Water fittings included with super core

Product Specifications:

• Compressor Wheel Inducer: 76mm
• Compressor Wheel Exducer: 109mm
• Compressor Wheel Trim: 49
• Compressor Housing A/R: 0.85
• Turbine Wheel Inducer: 89mm
• Turbine Wheel Exducer: 82mm
• Turbine Wheel Trim: 84
