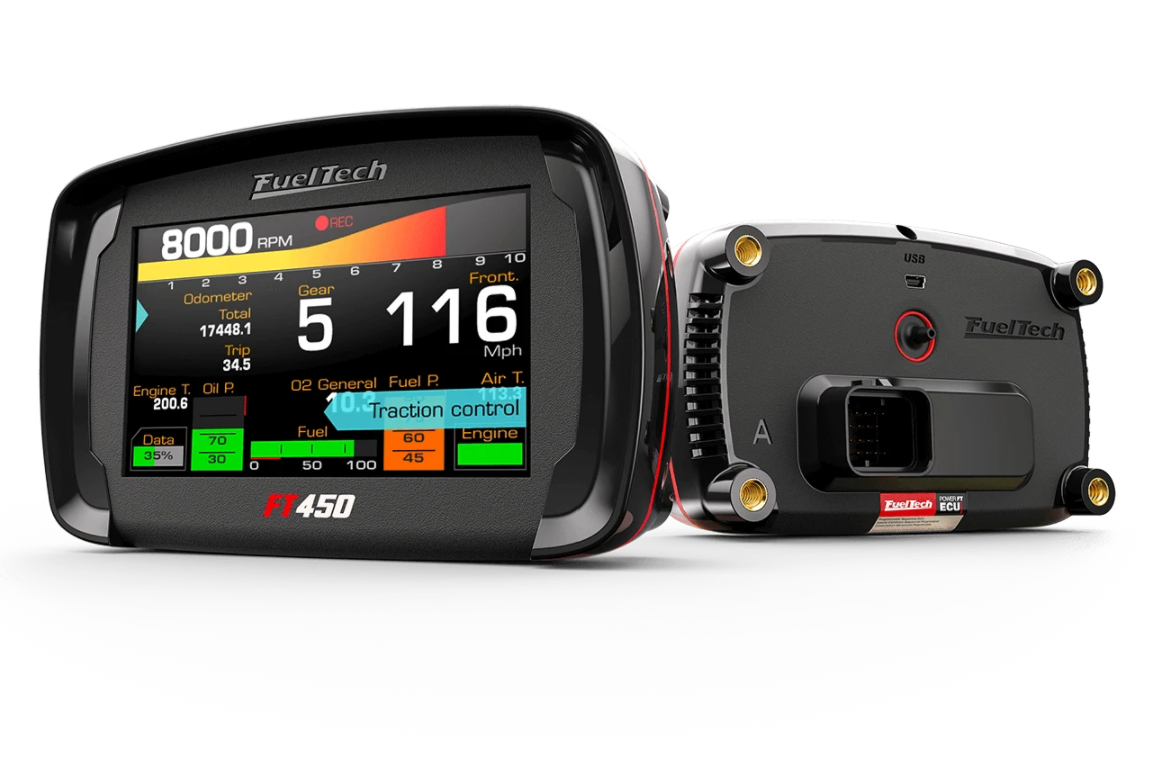

FuelTech FT450 ECU

FuelTech's FT450 is the perfect ECU for projects with limited input and output channel needs, offering 7 configurable inputs and 10 outputs.

This cost-effective aftermarket ECU is equipped with the same FTManager software and many of the same features offered in the FT550, FT550LITE, and FT600 including sequential injection and ignition, O2 closed loop, active traction control, integrated boost controller, internal datalogger, progressive and PRO-Nitrous controls, odometers, drag racing features and more!

The touchscreen display offers an integrated dash display, eliminating the need for additional gauges, has 4 programmable screens, and a customizable splash screen. The IP67 rating makes it perfect for off-road and marine applications such as PWCs / Jet Skis.

SPECIFICATIONS:

• Otto cycle engine control for 1, 2, 3, 4, 5, 6, 8, 10 and 12 cylinders
• Wankel engine control (rotary) for 2 rotors
• Full sequential ignition control, semi-sequential and multipoint control
• Ignition control through trigger wheel or distributor
• Full sequential ignition or wasted spark
• Closed loop injection through oxygen sensor (wide band lambda sensor)1
• AMP SUPERSEAL automotive connectors
• Ignition timing and actuator based Idle control (PWM valve)
• Real-time adjustable maps on the screen and on the FTManager software (including internet remote tuning)
• Waterproof sealed case made from polished ABS

INPUTS:

• Differential input for RPM signal
• Cam sync input (including multi-teeth cam sync triggers)
• 7 input channels fully customizable – digital and analog (temperature, pressure, speed and position sensors, TPS, external MAP, buttons, keys, etc.)
• Adjustable sensor reading scale
• Internal MAP sensor of 7 bar (1 bar vacuum and 6 bar positive pressure)
• 1 USB port for computer and FuelTech software connection
• FuelTech equipment: WB-O2 Nano, EGT-8 CAN, FTSPARK and SwitchPanel-8
• Third party equipment: Racepak IQ3, VNET, etc)
• OEM CAN partial compatibility with: C6 Corvette, C7 Corvette, 5th gen Camaro, 2009 CTS-V Cadillac

OUTPUTS:

• Total of 10 general-purpose outputs: (all of which can be used for general accessories as fuel pump, thermatic fans, valves or injectors for BoostController, solenoids, etc.)
• 6 open collector outputs: recommended for high impedance injectors (up to 4 injectors per output) – it is possible to set up to 10 outputs using external FuelTech Peak and Hold driver
• 5 open collector outputs with a 5V current source: recommended for ignition control

DASHBOARD:

• Screen dashboard which displays different sizes and styles to be used with any existing equipment or sensor
• Dashboard can have up to 4 screens with navigation through the screen or an external button
• 4 Virtual LEDs with combined activations for up to 3 conditions
• Diagnostic panel with real-time information of all inputs, outputs, CAN, Status Events and engine diagnostics
• Customizable splash screen allows the user to select the image shown on the FT450 start up screen

INJECTION CONTROLS:

• Full sequential injection for up to 10 outputs
• Closed loop fuel control through O2 sensor (wide band sensor) 1
• 2 injection banks (Bank A and bank B)
• Primary map though MAP, TPS or RPM
• Advanced 3D primary map with up to 32x32 cells (completely adjustable map index and size)
• Simplified 2D map with up to 1x32 cells by MAP or TPS and RPM compensation of up to 1x32 cells (completely adjustable map index and size)
• Injection time resolution of 0,001ms
• Acceleration fuel enrichment and decay adjustment
• Individual cylinder trim setting by MAP or RPM
• Injector compensation through:
• Engine temperature
• Air temperature
• Battery tension (individual per bank)
• TPS or MAP

• Starting engine map with the engine temperature
• Prime pulse table
• Post start enrichment
• Gear based fuel compensation
• Gear shift fuel compensation
• Fuel injection angle table
• Injectors deadtime compensation by battery voltage

1 An external wide band lambda sensor conditioner is required – FuelTech WB-O2 Nano, Alcohol-O2, WBO2 Datalogger, etc.)

IGNITION CONTROLS:

• Sequential ignition for up to 5 cylinders
• Main map by MAP, TPS or RPM
• Advanced 3D primary map with up to 32x32 cells (completely adjustable map index and size)
• Simplified 2D map with up to 1x32 cells per MAP or TPS and RPM compensation of up to 1x32 cells (completely adjustable map index and size)
• Injection angle resolution of 0,01°
• Individual cylinder injection settings
• Ignition timing compensation by air temperature
• Ignition timing compensation by engine temperature
• Gear based timing compensation
• Gear shift timing compensation

And much more!
