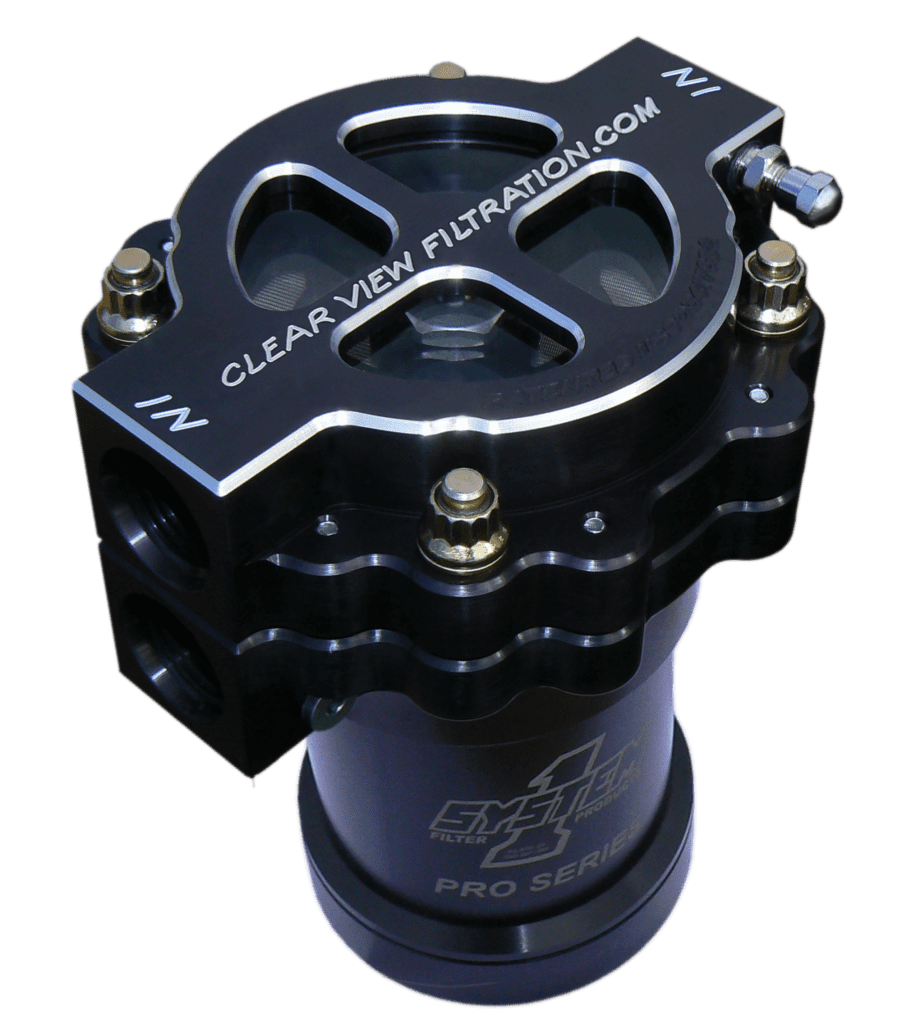

Clear View Filtration 4in Screw-on Oil Filter Assembly

Clear View Filtration’s Patented Dual Filtration Oil Filter Assemblies - designed with racers in mind.

When using the See Through Filter and an additional filter on the bottom the user is able to filter the same particles as a disposable would, but with the added ease of being able to monitor the engine without taking or cutting anything part.

Available in Black or Clear Anodized Finish

The Clear View 4″ Screw-On Filter Assembly can be used on any Big and Small Block Engine combinations. Ideal for racers, though can be used in street, dirt and other motorsport applications.

• For use with a System 1 or Disposable Oil Filter
• Dual filtration captures any microscopic particles out of the oil
• #12 Ports
• 115 Micron Element
• Small for tight spaces
• CNC machined pockets to remove weight

Smallest Particles Filtered: depends on System 1 or
disposable filter microns, varies depending on brand

• Disposable Filter Thread Size: 13/16” – 16 TPI
• Bypass Relief Valve: Yes
• Inlet & Outlet Fitting: #12 O-Ring – 1 1/16” – 12 TPI
• Operating Temp: max 220 degrees Fahrenheit
• Operating Pressure: max 150 PSI
• Height (without disposable filter): 3.00 in.
• Width: 5.00 in.
• Length: 6.00 in.
• Filter Weight: 3.4 pounds

Click for Printable PDF: Direction Pg 1-2 for P#400-115 (pdf) | Direction Pg 2-2 for P#400-115 (pdf)
