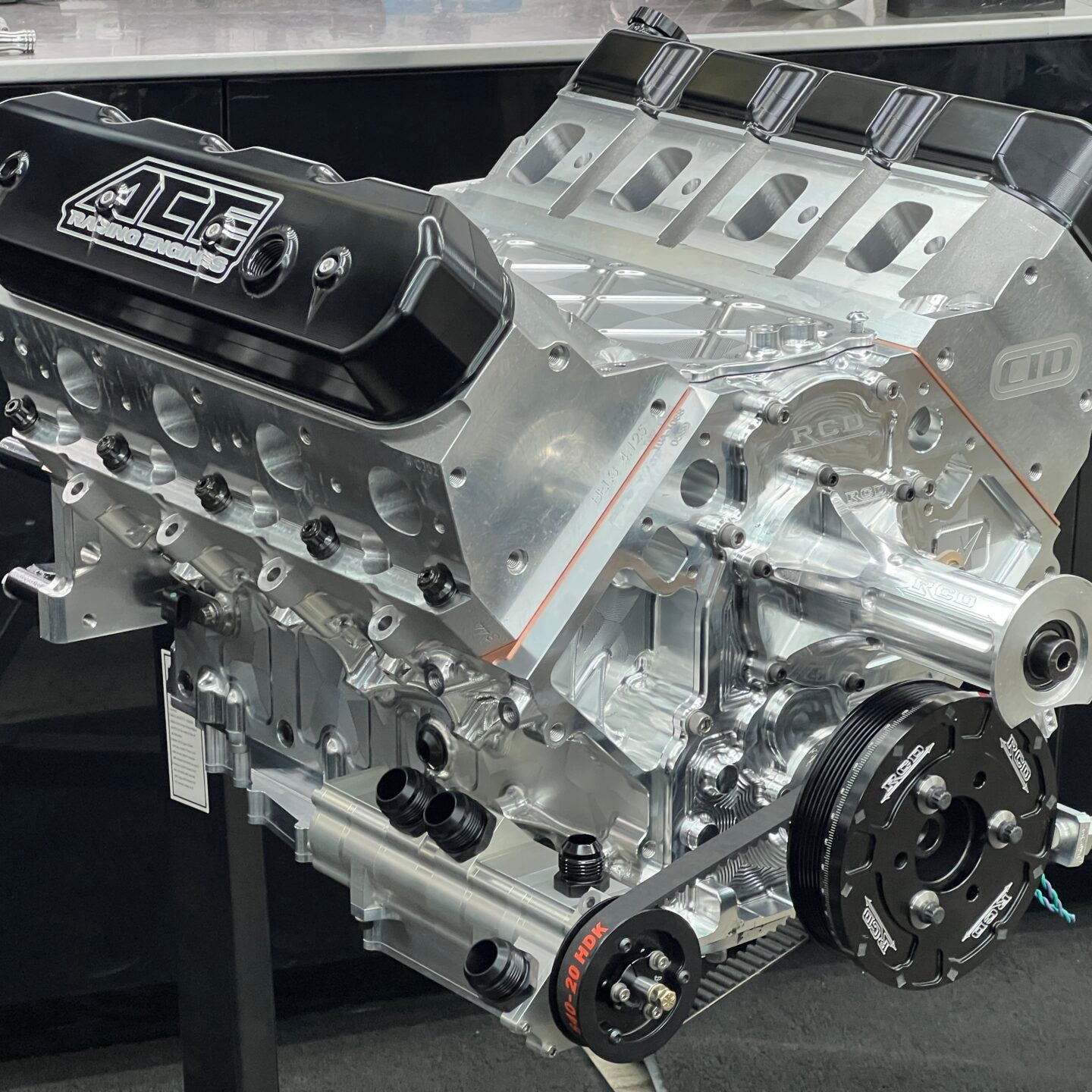

Noonan Billet LS w/ Cast Heads

The One-size Fit’s All Combination – Our most popular combination for Drag N Drive Cars, N/T Cars & Class Cars wanting to run Low 4’s, high 3’s!

This engine is ideal for customers wanting billet block / cast head combinations to enable them to fit into a larger variety of classes.

The Perfect Match To Suit Your Application

• Capable of going well into the 3 second range @ 190-195mph.
• Commonly used in small tire 1/8 mile drag radial cars and Drag ‘N’ Drive cars.
• Built for Max Effort
• Ideal for Forced Induction applications
• 3500hp Rated
• Hydraulic or Soild Roller
• Wet / H2O
• Wet with Dry Deck
• Solid / Dry

All of our engines include, but not limited to the following machining/blueprinting:

• Balancing
• CNC Block Machining
• CNC Sunnen SV-30 vertical hone with diamond stones
• Cylinders double torque plate diamond honed for correct piston to wall clearance and surface finish
• Surface finish honed according to fuel and power adder
• Detailed Engine Build Specifications File

Spec:

• 2800-3500hp
• Bore: 4.125 - 4.155"
• Stroke: 3.750", 4.125", 4.250"
• 2.750" Cleveland Mains
• Standard or Tall Deck
• Engine size: 400ci, 441ci, 447ci, 461ci

Short Block Components:

• Noonan Race Engineering Billet LS Edge Block - Wet , Solid/Dry or Dry Deck
• Winberg Crankshaft - Cleveland main journal
• Clevite Main Bearings
• Clevite Rod Bearings
• Billet Aluminum Rods
• Custom Ross Racing Pistons
• Total Seal Piston Rings
• Machined for receiver grooves

Long Block Components:

• Custom Camshaft - 55mm or 60mm core
• Hydraulic or Solid Roller
• CID LS7 Cylinder Heads - Please inquire for other options
• Top Fuel Hoops
• Copper Head Gaskets
• Custom APR 2000 1/2" Head Stud Kit
• Titanium Intake Valves
• Inconel or Titanium Exhaust Valves
• PSI Springs
• .904" or .937" Keyway Lifters
• Manton Push Rods
• Manton Rocker arms
• RCD Billet Gear Drive
• Noonan Billet Valley Cover
• Noonan Billet Rear Cover
• ATI Damper
• RCD Timing Kit
• ARP Hardware
• ACE Racing Engines Billet 'Super Tall' Valve covers

Oil System:

• Dailey Engineering Dry Sump System or
• External wet system with Barnes pump and custom pan

– Not for street use.
